Shelly Usb Charger For Wall Display Stand

Shelly USB Charger for Wall Display Stand

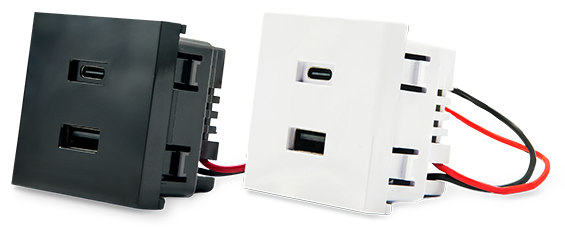

USB charger.png

Short description

A Type A and C USB charger for Shelly Wall Display Stand.

Main applications:

  • Residential

  • MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)

  • Light commercial (small office buildings, small retail/restaurant/gas station, etc.)

  • Government/municipal

  • University/college

Compatibility

  • Shelly Wall Display Stand

Specifications

Quantity

Value

Physical

Size (HxWxD):

45x45x40 mm / 17.72x17.723x15.75 in

Weight:

50 g / 1.76 oz

Shell material:

Plastic

Shell color:

  • White

  • Black

Environmental

Ambient working temperature:

-20°C to 40°C / -5°F to 105°F

Humidity:

30% to 70% RH

Electrical

Power supply:

100 - 240 V~ 50/60 Hz

Max. input current:

500 mA

Output

USB-A:

  • 5 V, max. 3 A

  • 9 V, max. 2 A

  • 12 V, max. 1.5 A

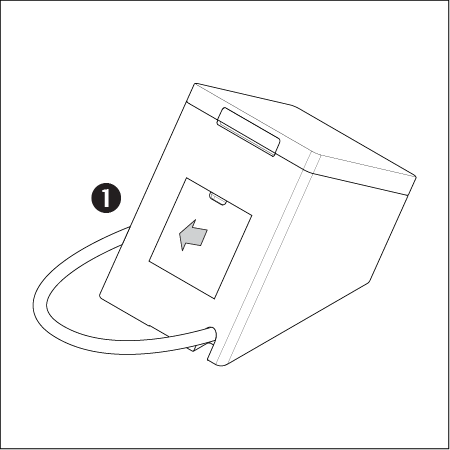

Wiring diagram


usb charger-wiring-01.png

-

Compliance

Shelly USB Charger for Shelly Wall Display Stand multilingual EU declaration of conformity.pdf

Printed user guide

Shelly USB Charger for Wall Display Stand multilingual printed user and safety guide.pdf
