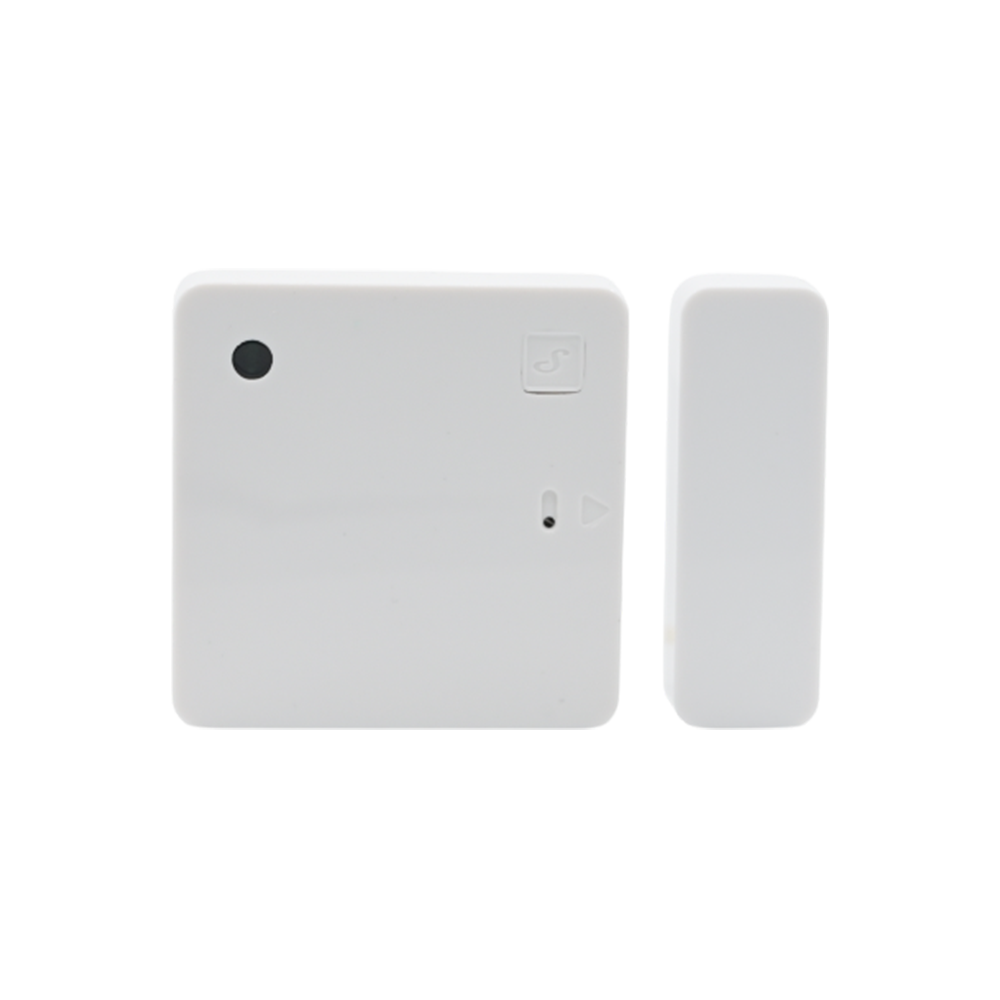

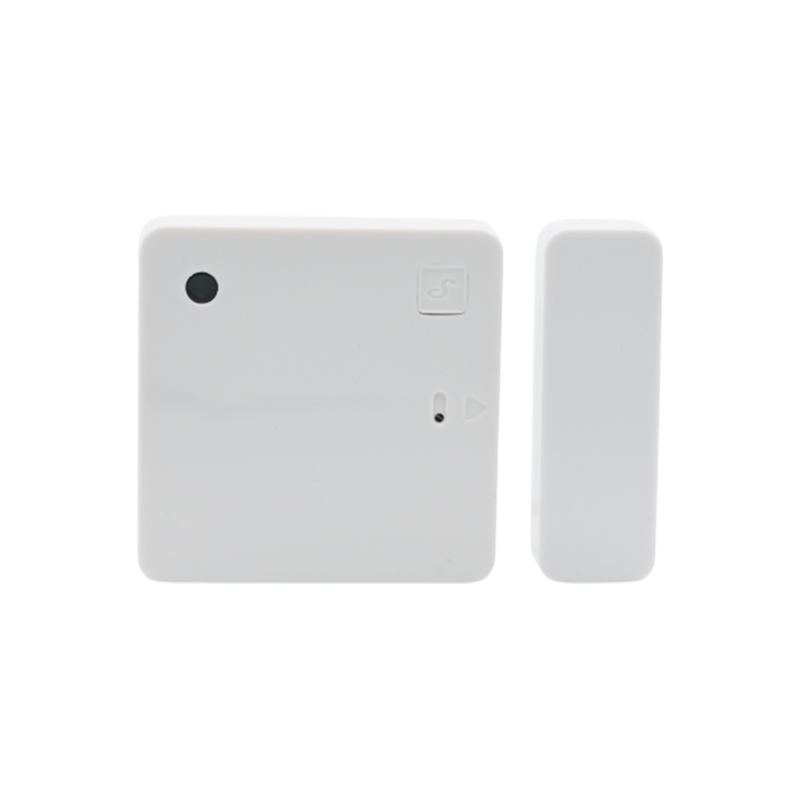

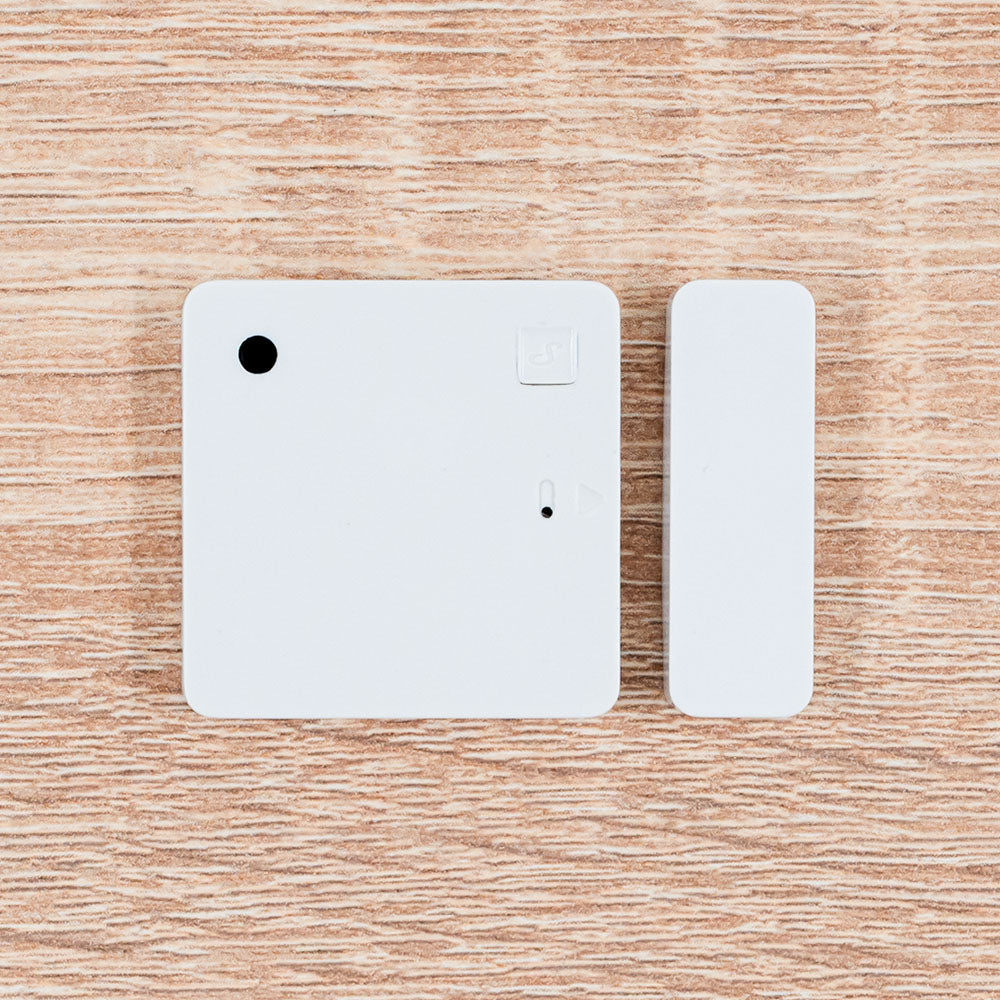

Shelly BLU Door/Window ZB

$22.99

Shipping calculated at checkout.

New

Out of stock

Typically used for:

Open doors/windows detection

Shelly BLU Door/Window ZB

$22.99

Shipping calculated at checkout.

Out of stock

Smart Bluetooth and Zigbee sensor for doors and windows that detects open/close status and measures light levels.

Typically used for:

Open doors/windows detection

Get Protection Plus

$2.29

Extended Coverage: Beyond the standard warranty
Free Replacements
Accidental Damage Protection

All products are developed to strict security standards

All orders are shipped from the US

Free shipping on orders over $50.00 within the US

Get notified when in stock

Sorry, this item is currently unavailable. Sign up and we will let you know when in stock.

Shelly BLU Door/Window ZB

$22.99

Excl. VAT

Shelly BLU Door/Window ZB

$22.99

Excl. VAT

Yes, I consent to receive emails from Shelly. I can unsubscribe at any time by clicking the link at the bottom of our emails. Privacy Policy and Terms of Use.

Key Features

Dual Connectivity: Bluetooth 5.0 and Zigbee connectivity.
Long battery life: Up to 5 years with included 3V CR2032 battery.
Detection of door/window opening and closing events.
Angle Measurement: Of door/window inclination angle for tilt-and-turn types.
Light sensor: Illumination (light) measurement capability.
Encrypted communication: AES encryption (CCM mode) for secure wireless communication.
Compact and lightweight: For versatile installation
Beacon mode: For periodic broadcasting of status.

Shelly BLU Door/Window ZB

Device name: Shelly BLU Door/Window ZB
Device model: SBDW-103C
Device Bluetooth ID: 0x0014

Shelly BLU Door/Window ZB (the Device) is a Bluetooth sensor designed to detect the opening and closing of a door or a window. It can also measure the tilt angle of a turn-and-tilt door or window. In addition, it features a light sensor.

Main features

Zigbee 3.0 and Bluetooth 5 LE connectivity, with support for simultaneous Zigbee + Bluetooth operation
Supports BTHome for compatible Bluetooth-based automations and integrations
Long battery life for low-maintenance operation
Door/window inclination angle measurement for detecting tilt/vent positions, not just open/close
Illumination measurement to trigger automations based on ambient light levels
Encrypted mode for protected communication

Main applications

Residential: single-family homes, apartments, condominiums
Light commercial: small office buildings, retail stores, restaurants, gas stations
Government / municipal: public buildings and facilities
Educational institutions: universities and colleges

Connectivity

Bluetooth
Zigbee

Modes of operation

Regular mode: The Device broadcasts the current open or closed state, illuminance, and battery status each time the open/closed state changes (door/window opened or closed). If a tilt-and-turn door or window is opened, the Device immediately broadcasts information about the event, the illumination, and the battery status at the time of detection. Two seconds later, it broadcasts tilt angle, illumination, and battery status. Every 8 seconds, the Device checks the tilt angle. If a change is detected, the Device broadcasts the updated angle.
Beacon mode: The Device broadcasts the current open and closed state, illuminance, and battery status every 30 seconds. You can enable Beacon mode in the settings in the Shelly Smart Control settings. For more details, visit the Shelly Smart Control guide.

The battery life may be significantly reduced when the Device is in Beacon mode.

User interfaces

One push button

Press 4 times quickly to put Shelly BLU Door/Window ZB into pairing mode. The LED flashes once every 2 seconds for 1 minute.
Press 5 times quickly to activate Zigbee pairing. The LED flashes twice every two seconds for 1 minute.
Press and hold for 30 sec to factory reset.

Specifications

Type	Value
Physical
Size (HxWxD):	35x35x7 mm ±0.5 mm / 1.38х1.38х0.27 in ±0.02 in (Sensor unit) 35x12x7 ±0.5 mm / 1.44х0.47х0.27 in ±0.02 in (Magnet)
Weight:	10 g ±1 g / 0.35 ±0.05 oz (Device with the battery) 8 g ±1 g / 0.28 ±0.05 oz (Magnet)
Shell material:	Plastic
Color:	White, black, brown
Environmental
Ambient temperature:	-20 °C to 40 °C / -5 °F to 105 °F
Humidity:	30 % to 70 % RH
Electrical
Power supply:	1x 3 V CR2032 battery (included)
Battery life:	5 years
Sensors
Reed switch	Yes
G-sensor	Yes
Light sensor	Yes
Radio
RF band:	2402 - 2480 MHz
Max. RF power:	<8 dBm
Bluetooth Protocol:	5 (LE)
Bluetooth Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
Zigbee
Protocol:	802.15.4
RF band:	2405 to 2480 MHz
Max. RF power:	< 8 dBm
Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
MCU
CPU:	EFR32MG27
Flash:	768 kB
Firmware capabilities
Schedules:	No
Webhooks (URL actions):	No
Scripting:	No
MQTT:	No
Encryption:	Yes
Other
Supported Devices	Shelly Plus / Gen3 / Gen4 series Shelly Pro series

Components and APIs

Compliance

Battery material safety data sheet

CR-PSDS-01 Panasonic MSDS

Printed user guide

Shelly BLU Door Window ZB multilingual printed user and safety guide.pdf

Installation guides

FAQ

What are the differences between the different generations of Shelly products?

Each new generation adds more power, memory, and features:

Gen 1 offers basic control;

Gen 2 (Plus Series, Mini Series, Pro Series) adds Bluetooth, scripting, and better security;

Gen 3 improves performance, adds Matter (starting from firmware version 1.6.0 or newer) and advanced monitoring;

Gen 4 offers multi-protocol connectivity, featuring Wi-Fi 6, Bluetooth, Zigbee, and Matter.

Learn more: https://support.shelly.cloud/en/support/solutions/articles/103000316073-comparison-of-shelly-gen-1-gen-2-and-gen-3-devices?fbclid=IwY2xjawJHTR9leHRuA2FlbQIxMAABHaBfrCc1-eqoghqxTVUgn7QBaaqTBKa_dZyem_FbH6z6WrlrHbWo0p_OTg_aem_ltK1ZvtsjkrpzXAFx7uvhQ

Do I need a gateway to use the device?

Yes, to use this device with the Shelly Smart Control app, a gateway is necessary. Compatible gateways are Shelly BLU Gateway, or alternatively any Shelly Plus, Pro, Gen3 or Gen4 device (excluding sensors) can act as a gateway.

Is it possible to use the device without a hub?

Yes, Shelly devices (except for Wave devices) operate independently without the need for a hub. They connect directly to your Wi-Fi network, and you can control them via the Shelly Smart Control app, web interface, or through integrations with platforms like Google Home, Alexa, Home Assistant and Samsung SmartThings.

Can the device work independent or it requires a gateway?

To use BLU devices with the Shelly Smart Control app, a gateway is necessary. Compatible gateways are Shelly BLU Gateway, or you can also use any Shelly Plus, Pro, Gen3 or Gen4 device to act as a Gateway (excluding sensors).

When should I consider using the Shelly BLU Door/Window sensor?

Designed to detect opening or closing of doors/windows and report them immediately, triggering home automation scenarios accordingly. Also can measure tilt angle and luminosity.

What features does the Shelly BLU Door/Window sensor offer?

The Shelly BLU Door/Window sensor provides:

- Immediate detection of door/window openings and closings.

- Tilt angle measurement for tilt-and-turn windows. Ambient light (LUX) measurement to inform lighting automation.

- Bluetooth connectivity for quick response times and extended battery life.

- Beacon mode for periodic status broadcasts.

Knowledge Base

A blue outline icon of an open book with a trophy placed on top, symbolizing achievement or success in education or learning.

View full details

Shelly BLU Door/Window ZB

Features

Use cases

Description

Shelly BLU Door/Window ZB

$22.99

Excl. VAT

Shelly BLU Door/Window ZB

$22.99

Excl. VAT

Yes, I consent to receive emails. I can unsubscribe at any time. Privacy Policy and Terms of Use.

Shelly BLU Door/Window ZB

$22.99

Excl. VAT

Shelly BLU Door/Window ZB

$22.99

Excl. VAT

Yes, I consent to receive emails. I can unsubscribe at any time. Privacy Policy and Terms of Use.

Secure Every Entry Point

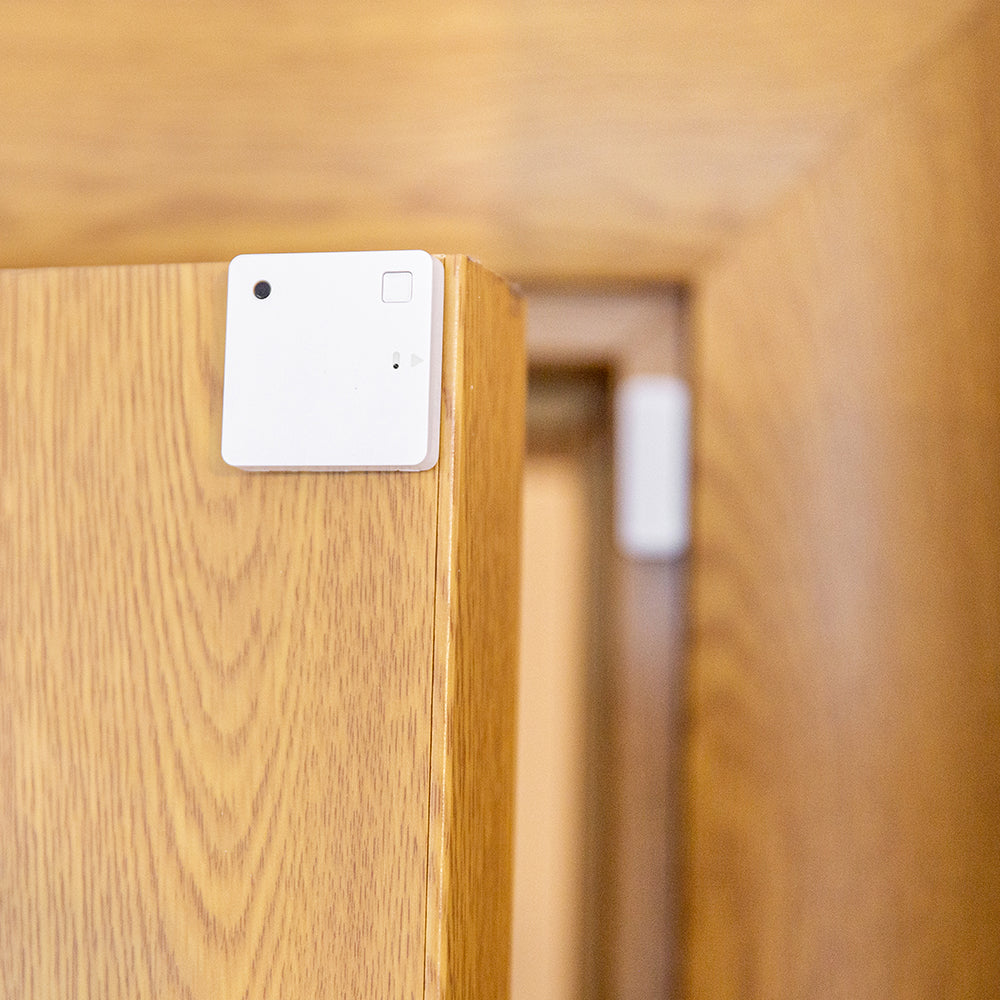

Detects openings/closing instantly and triggers your home automation. Strengthen security, automate lighting, or track access. The compact design installs easily on doors, windows, gates, garage doors, and more - blending into any interior.

Dual Connectivity

Bluetooth 5.0 and Zigbee connectivity.

Compact size

Ultra-small design - fits discreetly on any door or window.

Strong encryption

Secured with advanced encryption protocols to protect against unauthorized access.

Long-lasting battery

Up to 5 years of battery life for worry-free, reliable operation.

Scene activation

Trigger or automate custom scenes by linking with other Shelly devices.

Wide compatibility

Works with popular smart home platforms and is fully manageable via the Shelly Smart Control app.

SOLUTIONS

Shelly BLU Door/Window ZB

A warm welcome home

Give a warm welcome to your loved ones when entering your home. When placed on the front door, Shelly BLU Door/Window ZB can turn on the lights when the door is opened.

Let no energy go to waste

Shelly BLU Door/Window ZB can also contribute to your energy efficiency efforts. By connecting it to other devices, you can automate the adjustment of heating, cooling, or lighting based on the door or window open state. For example, when a window is opened, the system can automatically turn off the heating to conserve energy.

Protect your home, even when you're away

Always be informed of any unwanted guests! Simply place Shelly BLU Door/Window ZB on your front door, balconies, windows, or garage door, and receive a notification if someone opens them while you are away. But that’s not all! Shelly BLU Door/Window ZB can be used as part of your security system using automation scenarios or scenes. It could activate other devices to protect your home when unexpected activity occurs at your premises.

WHY ZIGBEE?

The communication standard for low-power, highly interconnected smart home

A Zigbee-operated smart home ecosystem offers seamless, energy-efficient connectivity for your smart devices. It ensures fast communication, supports a wide range of devices, and creates a reliable mesh network.
