Shelly BLU RC Button 4 ZB

Device identification

Device name: Shelly BLU RC Button 4
Device model: SBBT-004CUS
Device Bluetooth ID: 0x0007

Short description

Shelly BLU RC Button 4 US (the Device) is a smart four-button Bluetooth remote control interface. It features long battery life, multi-click control, and strong encryption. The Device has in-built magnets and a magnetic holder included in the package providing users with versatile placement and usage options.

Main features

Long battery life
Supports multi-click
Compact size, portability, and ease of use
Strong encryption
Variety of placement and usage options

Use cases

Lighting control: Assign the button to control specific lighting scenes or individual smart lights. For example, a single press could turn on/off the lights, while a long-term press could dim or brighten them.
Garage door opener: Use the strong encryption of Shelly BLU RC Button 4 and control your smart garage door opener as you approach or leave your garage.
Smart blinds or curtains: Open or close motorized blinds or curtain at the touch of a button.
Location-based automation: Set the device in Beacon mode so that to trigger specific actions when you come within Bluetooth range. Use the Device for presence control, for example to keep lights on while you need to spend some time in a certain area.

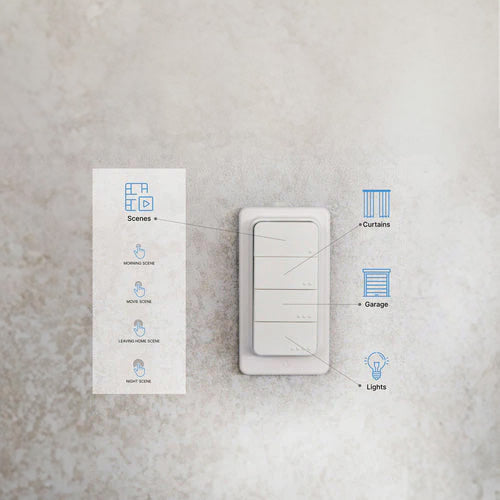

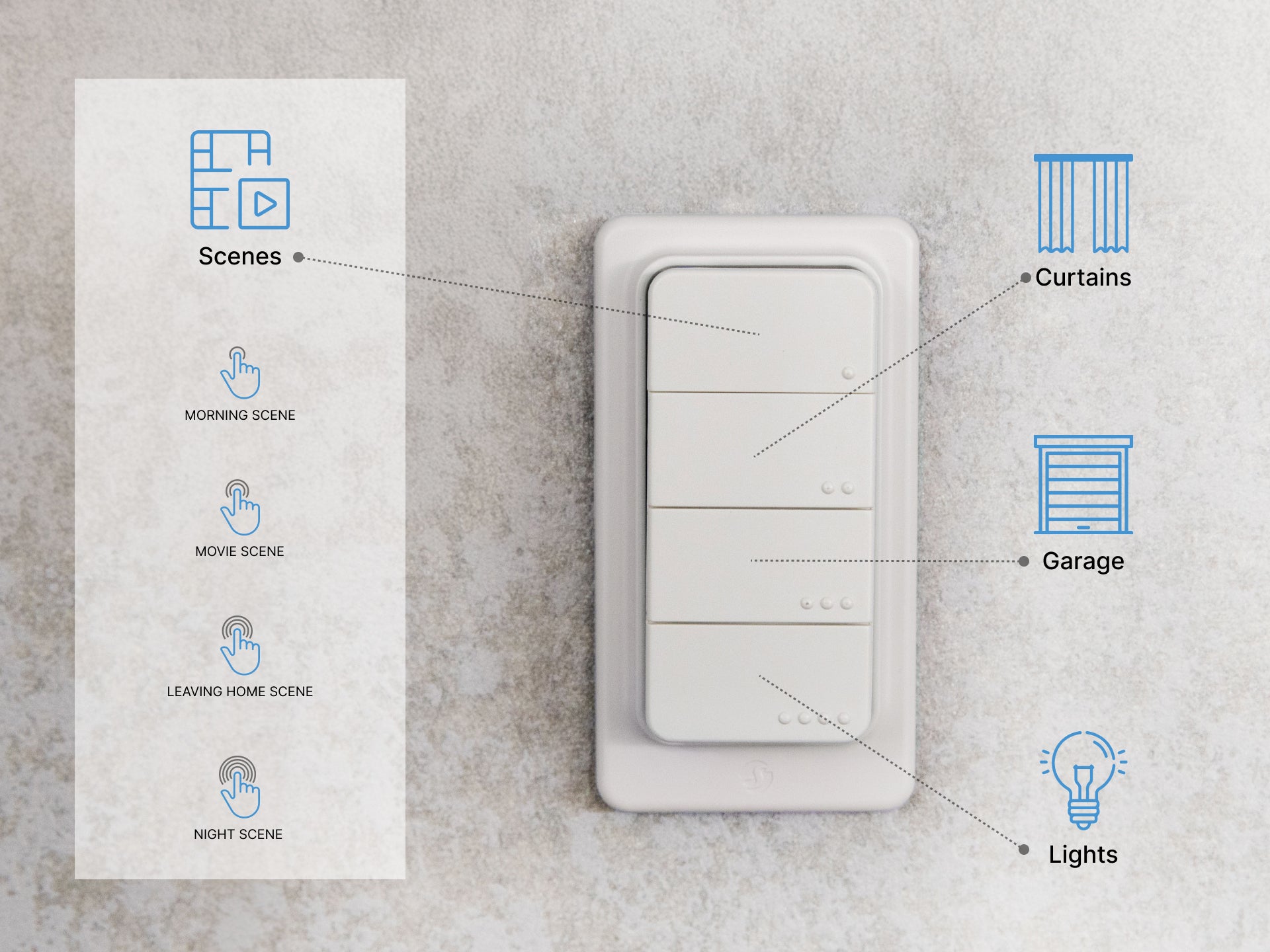

Scene control: Use the 4 buttons to activate any scene or specific actions you can imagine. Each button supports single, double, triple and long push - which allows the user to make 16 different actions!

Connectivity

Bluetooth Low Energy (BLE)

User interface

Inputs

Four push buttons
- Press and hold any two buttons simultaneously for 10 sec to pair Shelly BLU RC Button 4 US with another Bluetooth device.
- Press and hold any button for 30 sec to factory reset (possible only shortly after inserting the battery).

Outputs

LED indication
- Blue light flashing when the Device is in pairing mode.
- Red light flashing when a button is pressed. The number of flashes corresponds to the number of the button presses.

Specifications

Quantity	Value
Physical
Size (HxWxD):	Button: 65x30x13 mm / 2.56x1.18x0.51 in Magnetic holder (for wall switch boxes): 105x44x13 mm / 4.13x1.73x0.51 in* Magnetic holder (for flat surfaces): 83x44x9 mm / 3.27x1.73x0.35 in
Weight:	21 g / 0.74 oz
Shell material:	Plastic
Shell color:	White
Environmental
Ambient working temperature:	-20 °C to 40 °C / -5 °F to 105 °F
Humidity:	30% to 70% RH
Electrical
Power supply:	1x 3 V battery (included)
Battery type:	CR2032
Estimated battery life:	Up to 2 years
Bluetooth
Protocol:	4.2
RF band:	2400 - 2483.5 MHz
Max. RF power:	< 4 dBm
Range:	Up to 30 m / 100 ft outdoors, up to 10 m / 33 ft indoors (depending on local conditions)
Encryption:	AES (CCM mode)
