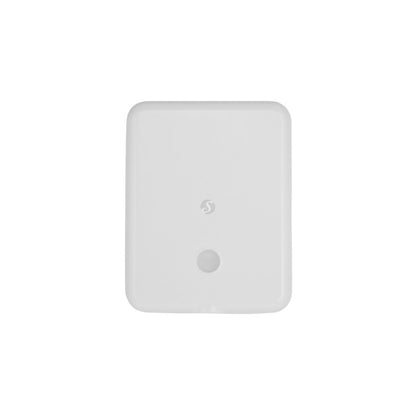

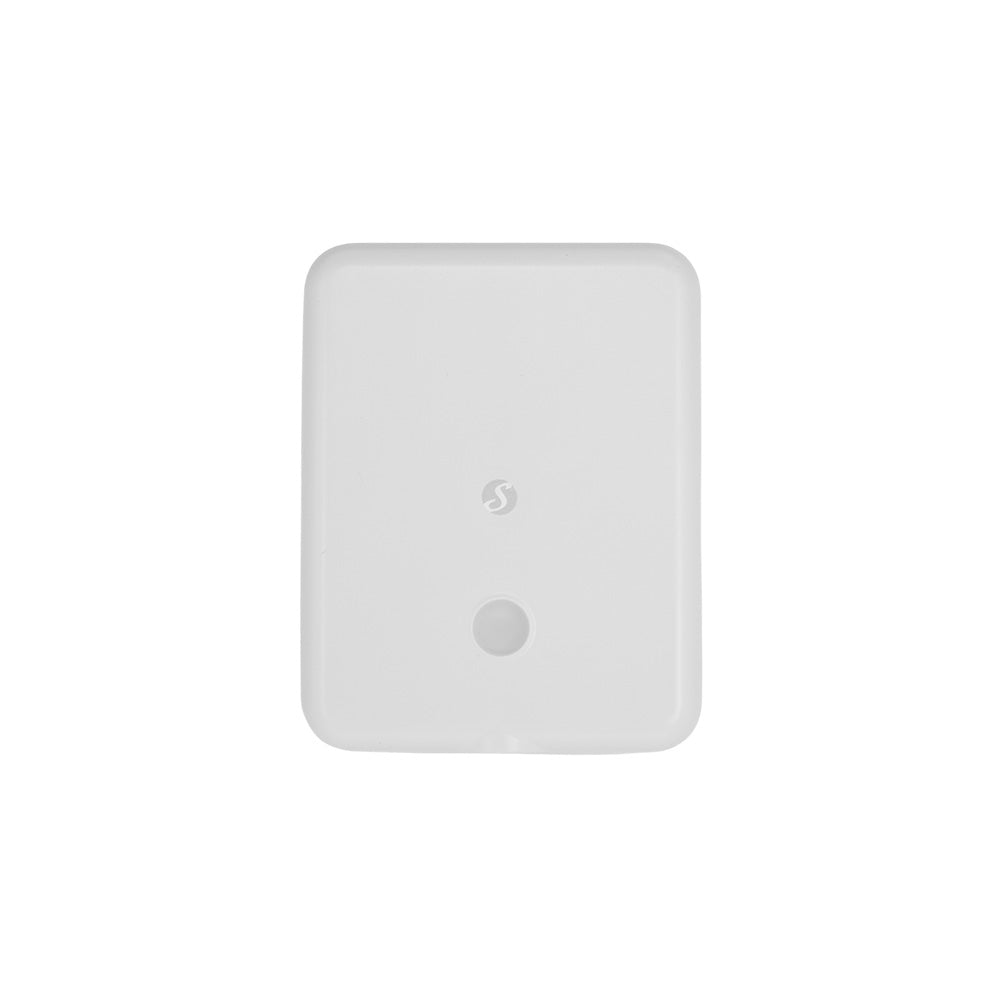

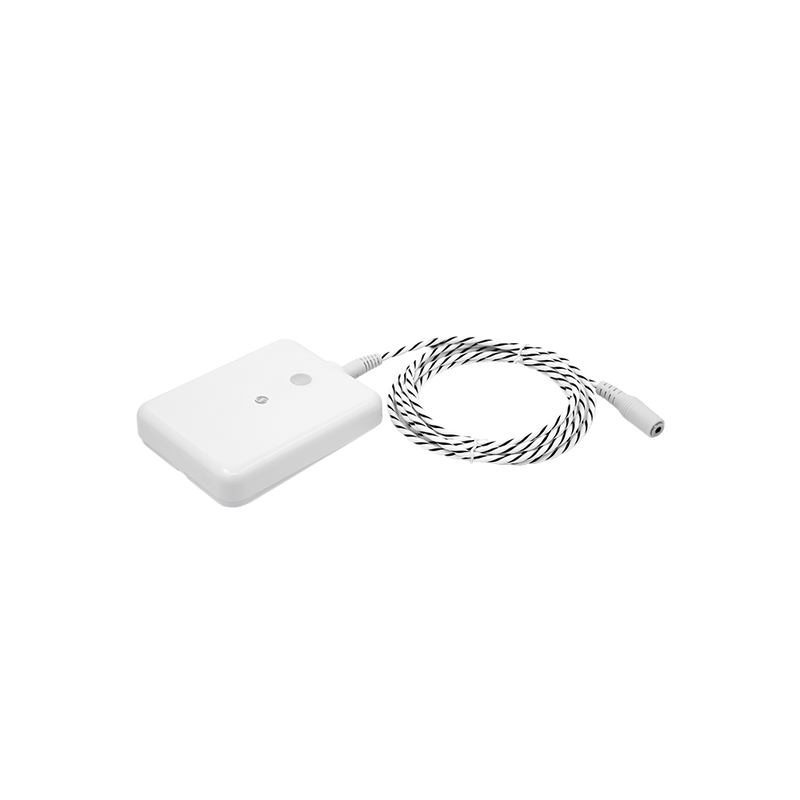

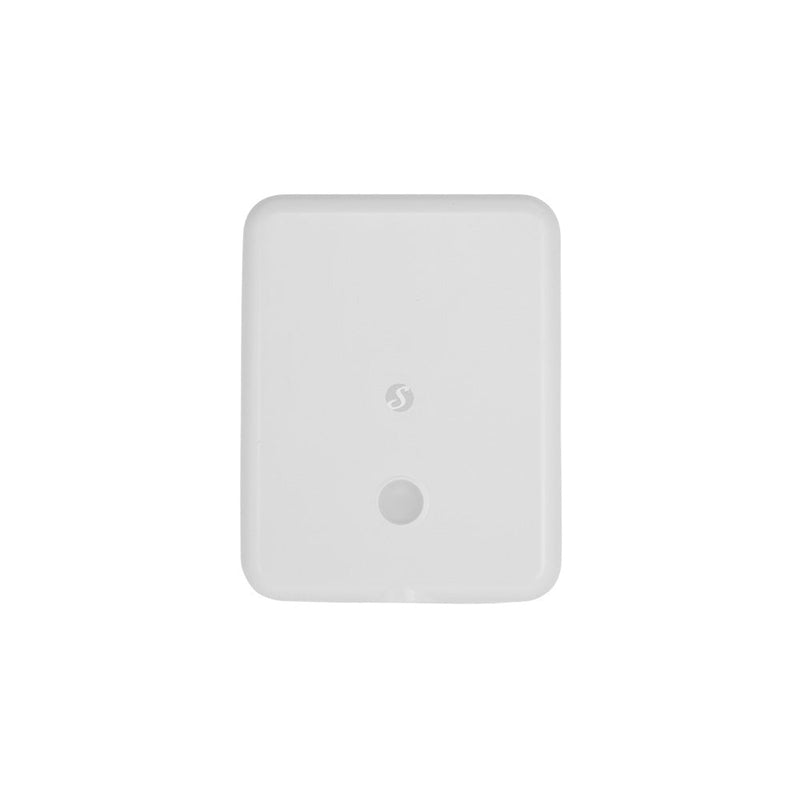

Shelly Flood Gen4

Device identification

Device name: Shelly Flood Gen4
Device model: S4SN-0071A
Device SSID: ShellyFloodG4-XXXXXXXXXXXX
BLE ID: 0x1822

Short description

The Shelly Flood Gen4 alerts you when water appears where it shouldn’t - such as under your water heater, dishwasher, or washing machine. It comes with an innovative leak sensor cable that covers larger areas, detecting leaks beyond a single point to provide unmatched protection for your home. Multiple leak sensor cables can be connected, extending coverage up to 150 meters.

Receive instant alerts directly to your mobile device and customize safety protocols to protect your family and property.

Shelly Flood Gen4 offers Wi-Fi, Zigbee, and Bluetooth connectivity. It also includes a built-in web interface for easy monitoring, control, and settings adjustments.

Main features

Leak detection for smaller and larger areas via extendable leak sensor cable
Supports two modes: Flood Detection and Rain Detection
Three built-in flood alarm modes: Intense, Normal, and Economic
Remote notifications and built-in buzzer for local alerts
Battery-powered for flexibility and uninterrupted operation
IP44 protection for durability and environmental resistance
Broad compatibility with third-party home automation systems
Supports local automation actions for independent operation
Support for Shelly Cloud and Shelly Smart Control app

Use cases

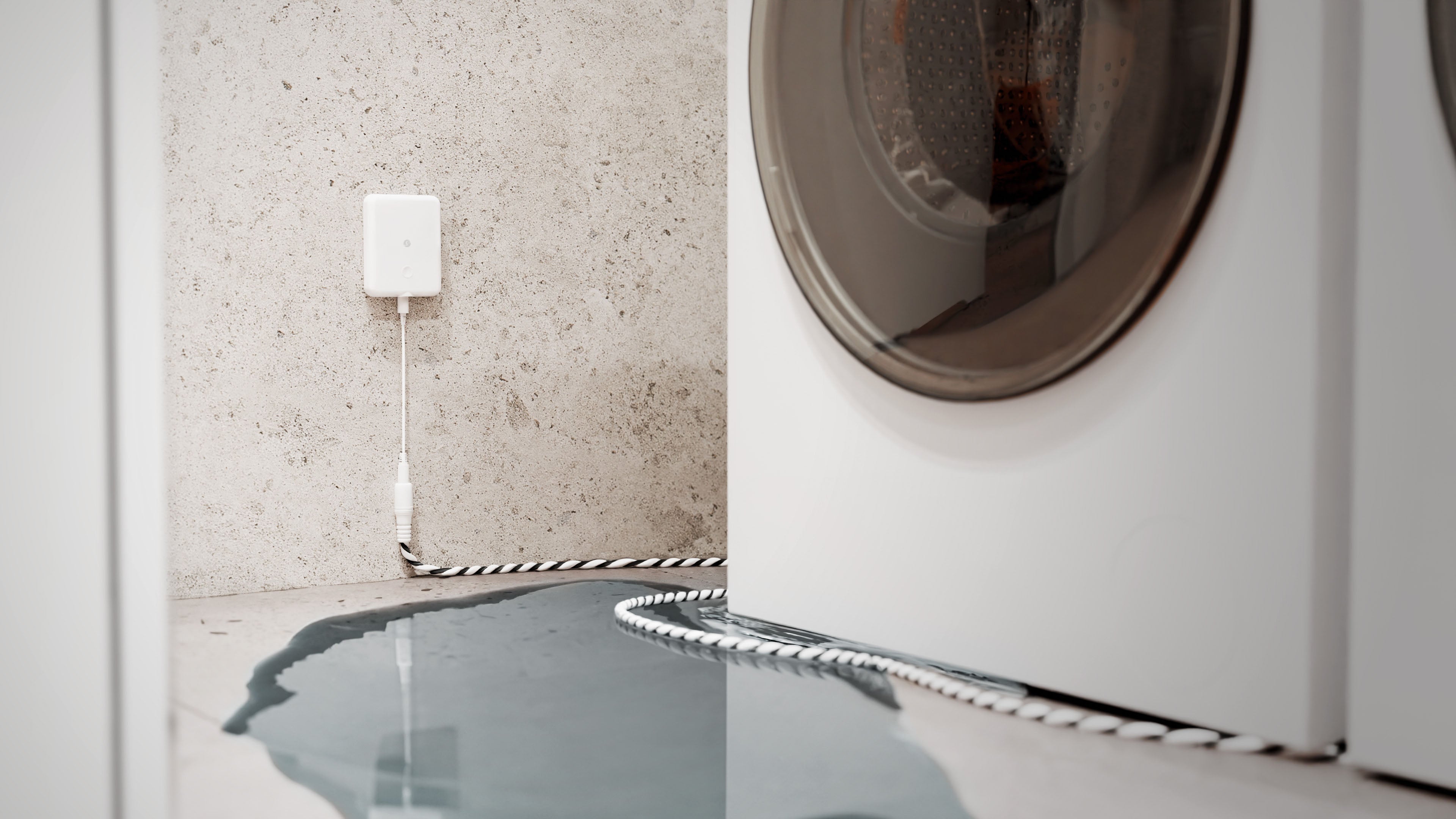

Immediate Flood Detection
Receive instant alerts when Shelly Flood Gen4 detects water in areas like basements, bathrooms, or laundry rooms, enabling quick action to prevent damage.

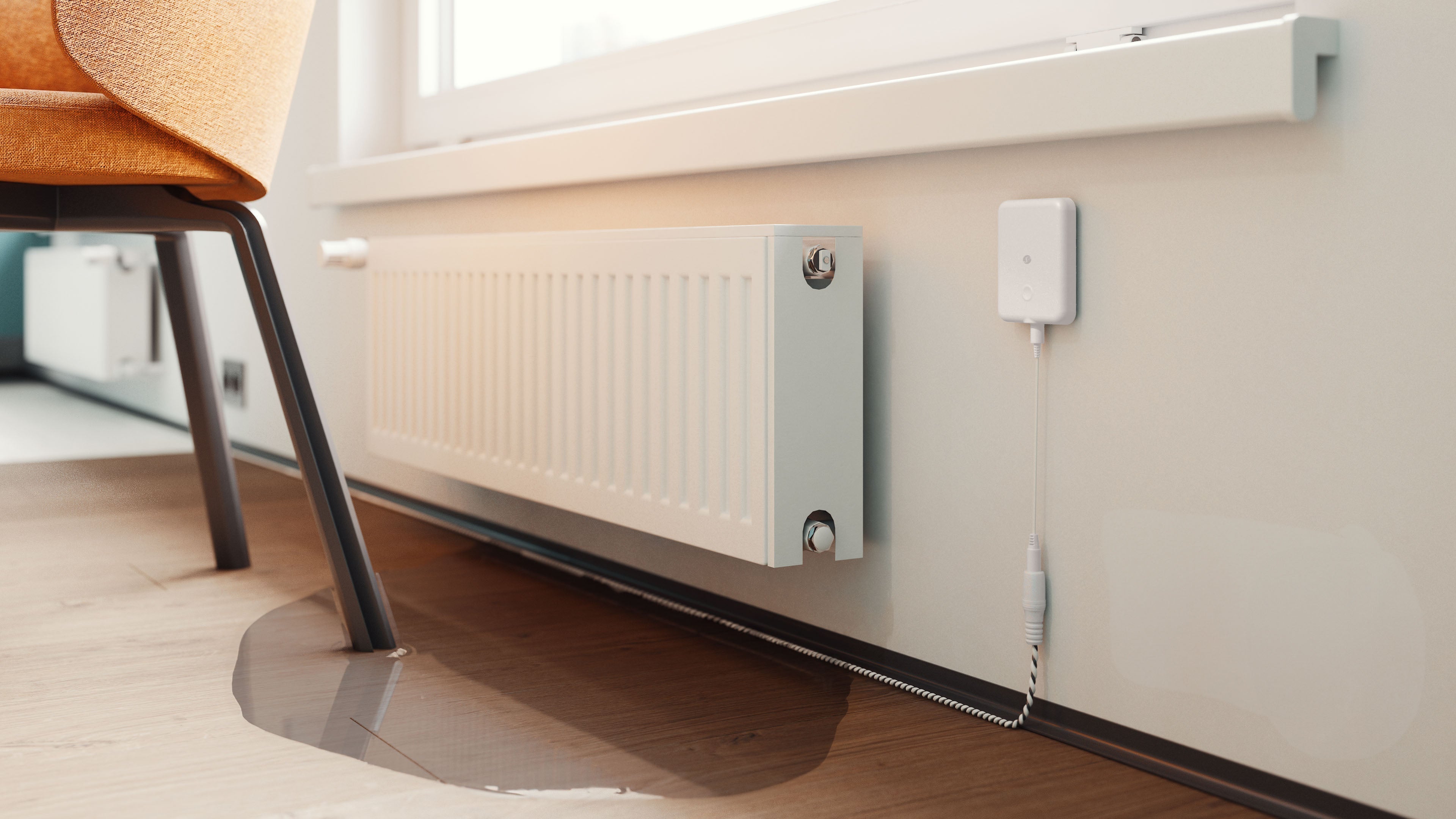

Protect Your Home from Water Damage

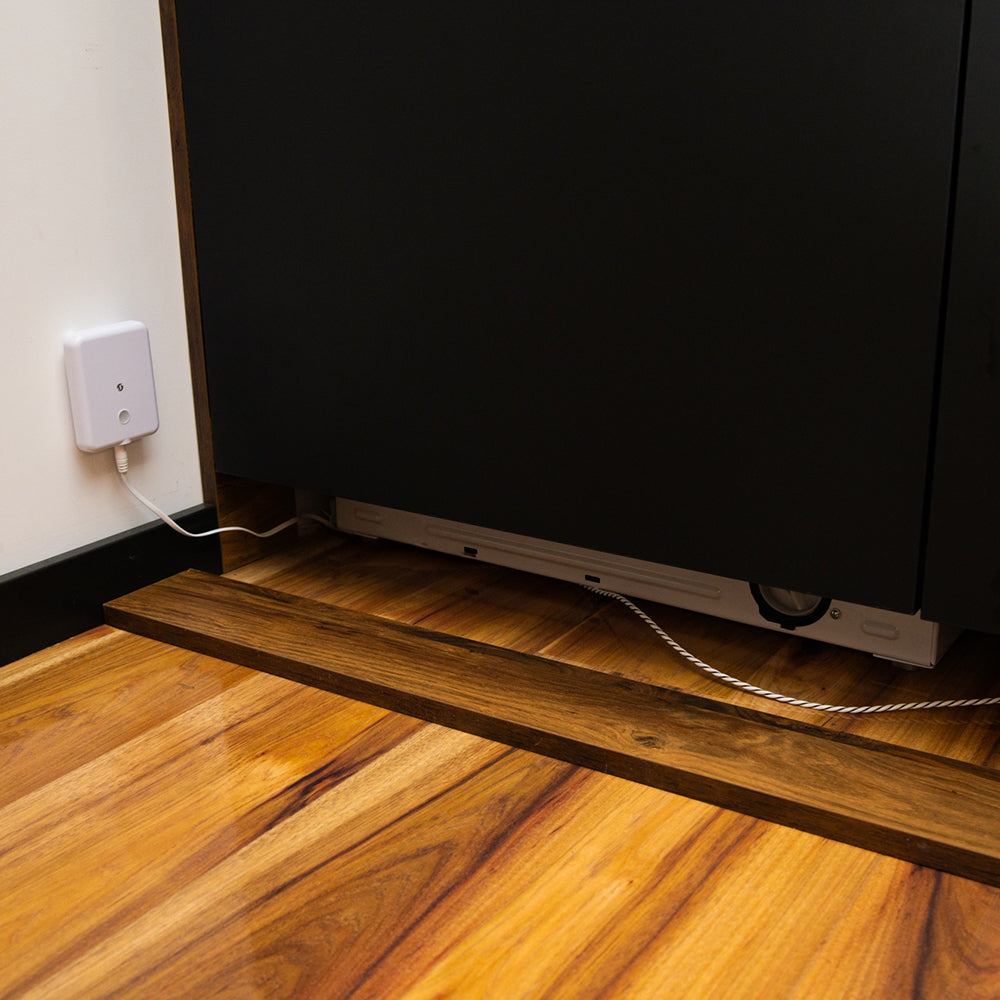

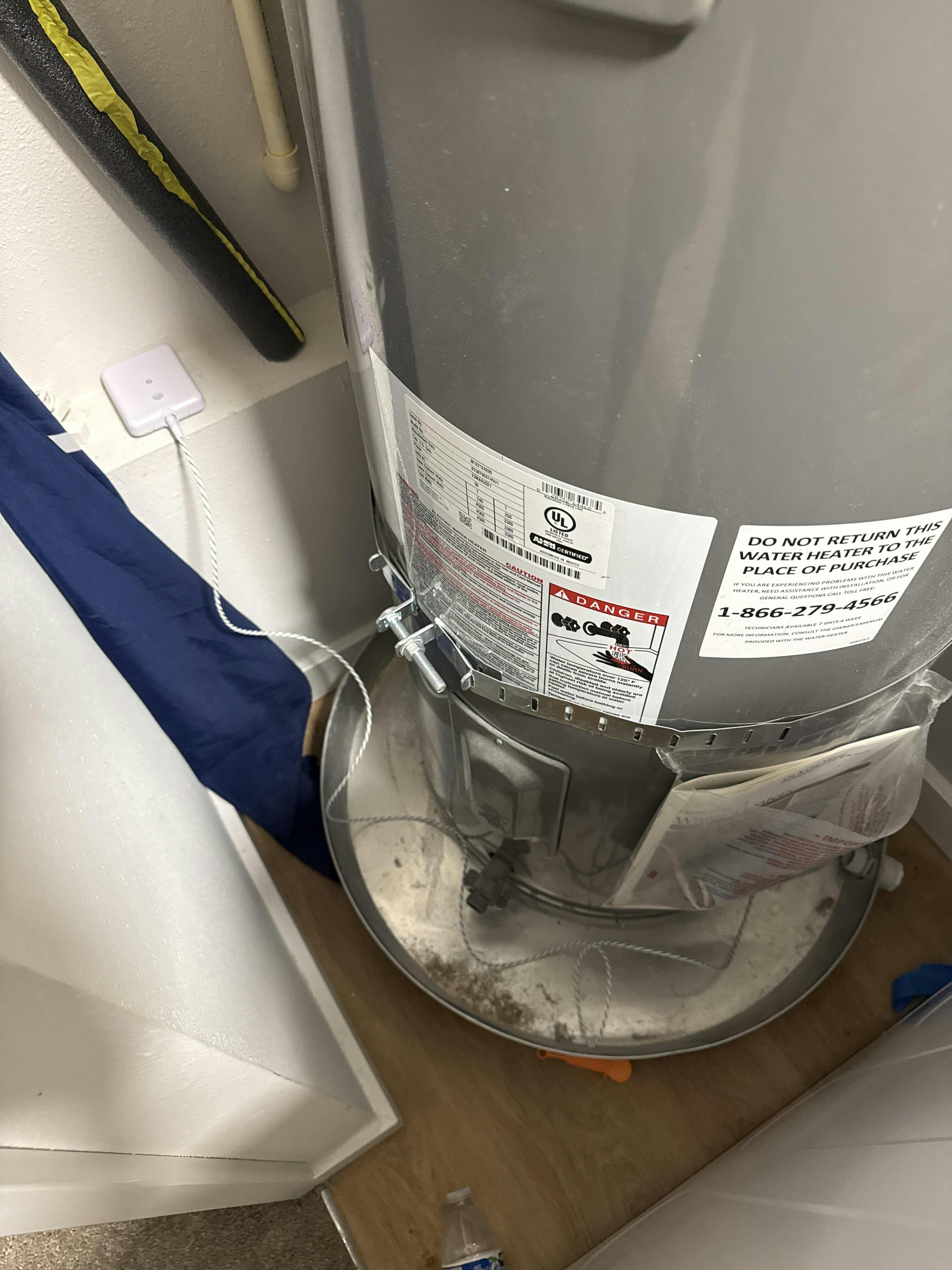

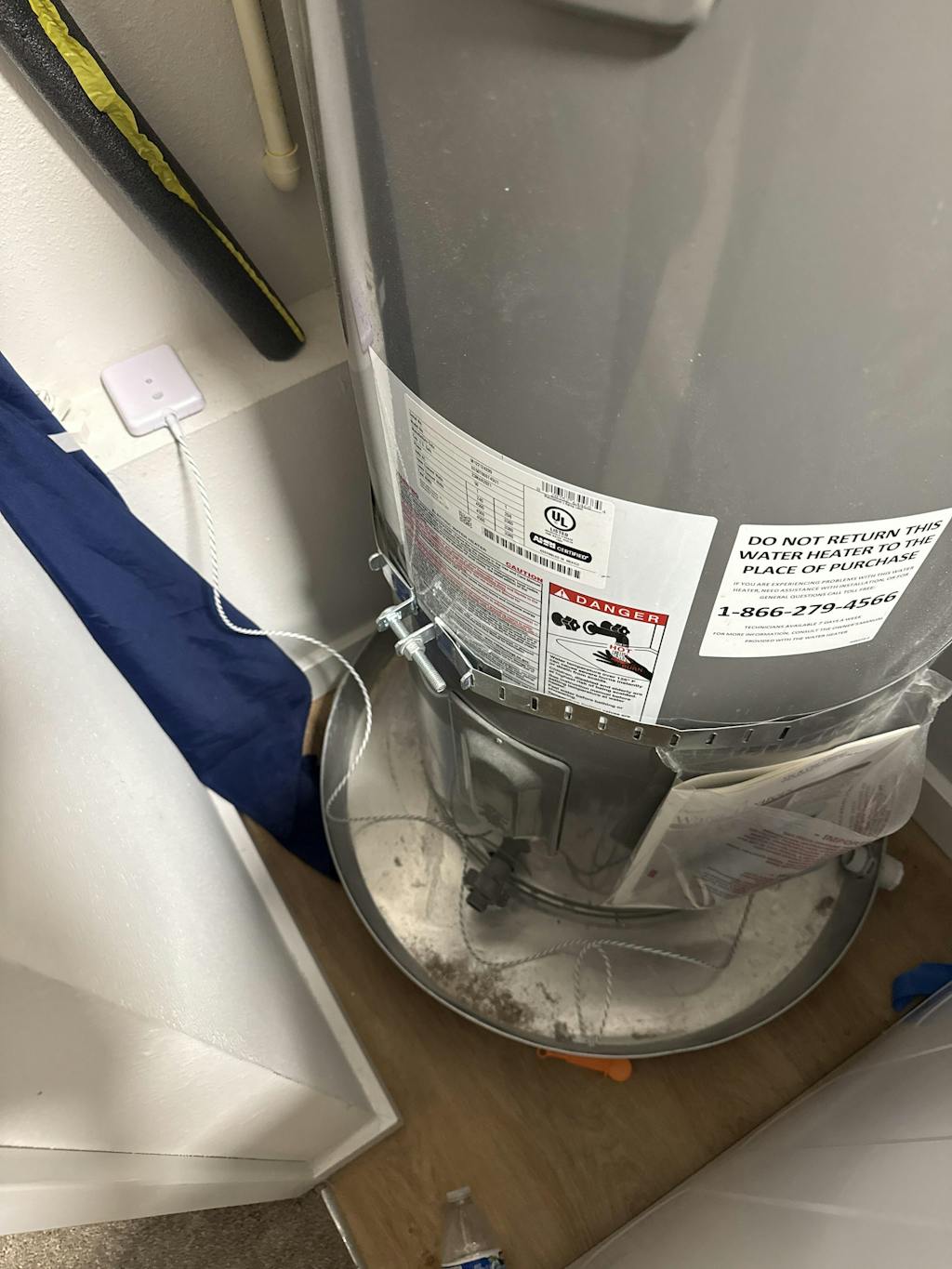

Place Shelly Flood Gen4 near vulnerable appliances or plumbing systems. If a leak occurs, you’ll be alerted in real time, helping to minimize potential damage.
Monitor High-Risk Areas

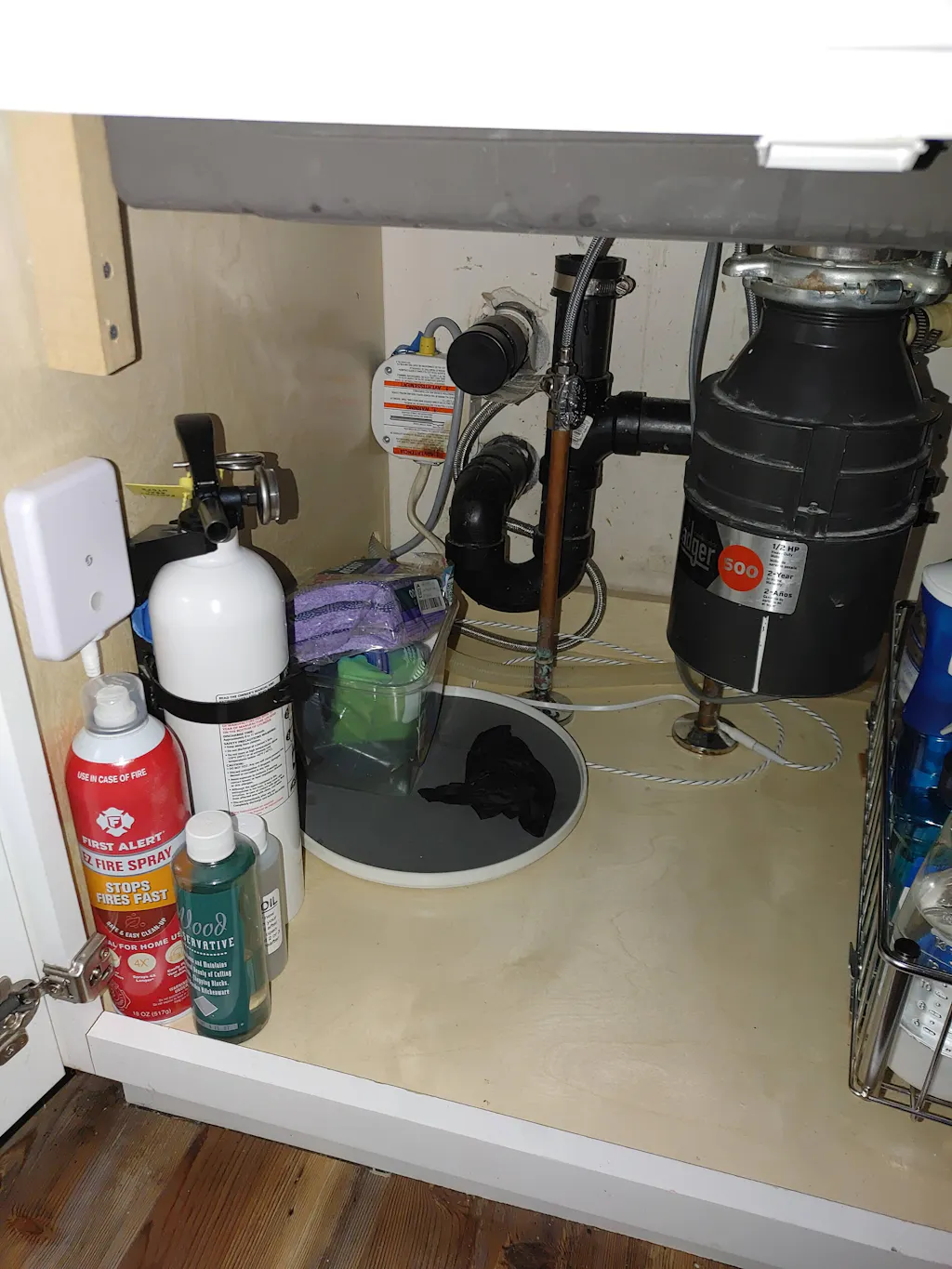

Easily install Shelly Flood Gen4 in any room where flooding is a concern, such as kitchens or under sinks, and receive notifications through your phone without complex setup.
Automatic Appliance Shutoff
Integrate Shelly Flood Gen4 sensor with smart devices to automatically turn off washing machines or dishwashers when a flood is detected, preventing further water damage.
Detect Pipe Leaks Early
Run the leak sensor cable along a suspect pipe to quickly detect the presence of a leak, helping you take action before damage spreads.

Main applications

Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)…
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)…
Government/municipal
University/college
Farming

Integrations

Amazon Alexa supported capabilities

Contact Sensor

Google Smart Home supported traits

Sensor State

Samsung SmartThings supported capabilities

Battery
Water Sensor

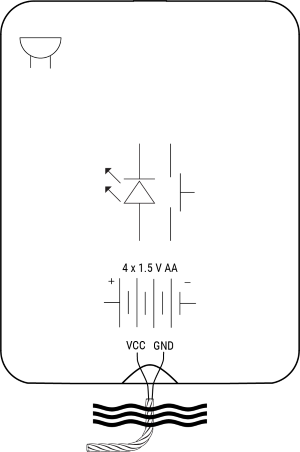

Simplified internal schematics

Connectivity

Wi-Fi
Bluetooth
Zigbee
Matter

Accessories

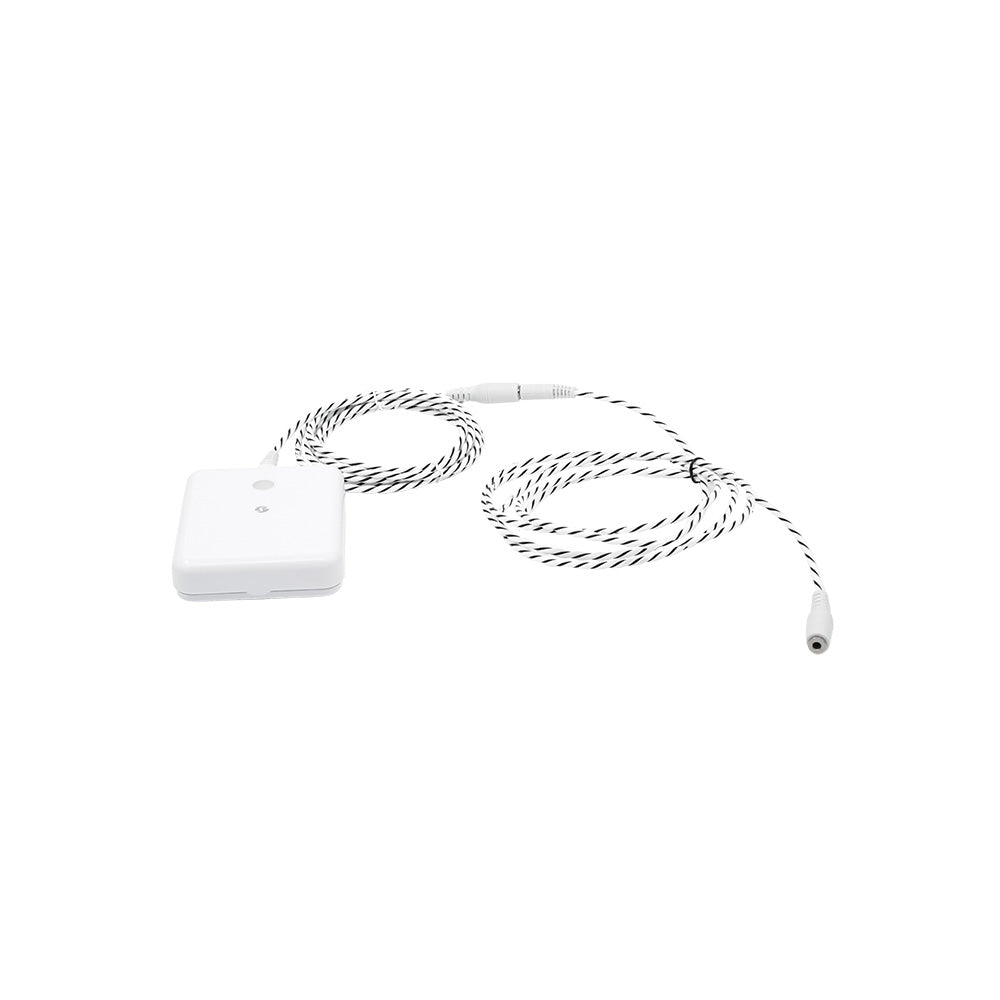

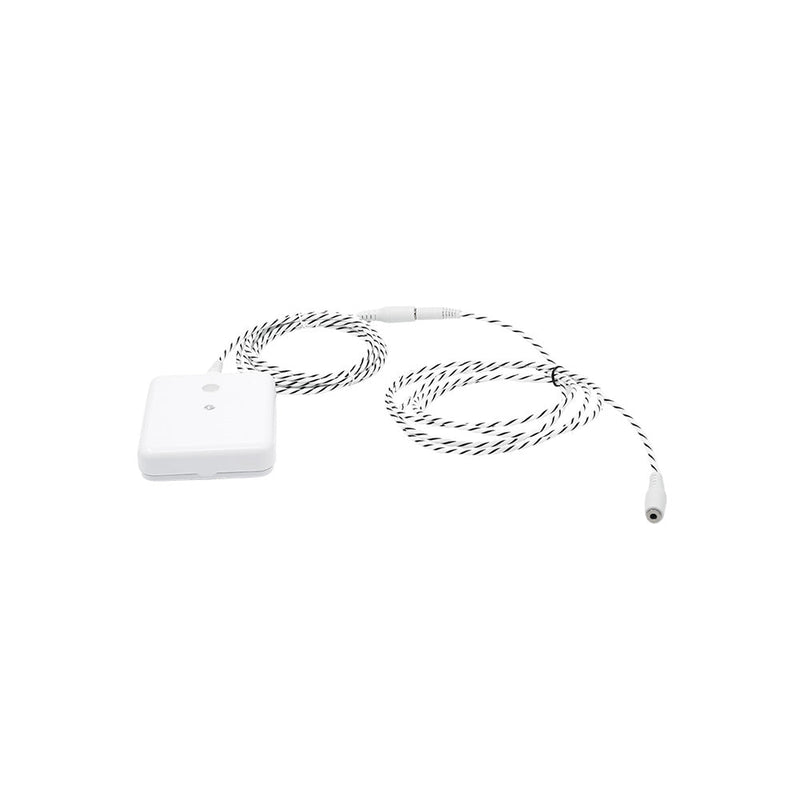

Shelly leak sensor cable - included in the package with Shelly Flood Gen4. Click here to access 3D print files for cable holders compatible with the Shelly Leak Sensor Cable.

User interface

Inputs

LED Button:
- Press 1 time: Wakes up the device for 3 minutes. The LED turns on and initiates a state report.
  - Press 1 time: Reports status of the Flood component.
  - Press 2 times rapidly: Sends the device to sleep.
  - Press 3 times rapidly: Puts the device in Zigbee inclusion mode. It stays in this mode for 3 minutes and you can find it in the Home Automation platform through the Zigbee Hub.
  - Press 5 times rapidly: Switch the Device from Matter firmware (default) to Zigbee, or back.
  - Press and hold for 5 seconds: Network reset. The LED flashes slowly. If no action is taken within 3 minutes, the device retains its existing settings.
  - Press and hold for 10 seconds: Resets the device to factory settings.

Outputs

Buzzer
- Long beep (3.5 sec ON / 1.5 sec OFF): Indicates flood detection.
- Short beep (0.3 sec ON / 5 sec OFF): Indicates low battery when the battery level is below 20%. The low battery alarm will not sound during a flood event (unless the flood alarm is muted via the LED button) or when Economic mode is selected.
LED Button Indication:
- Blue light: AP mode is enabled.
- Red light: STA mode is active, but the device is not connected to a Wi-Fi network.
- Yellow light: STA mode is active, and the device is connected to a Wi-Fi network but not connected to the Shelly Cloud, or the Shelly Cloud is disabled.
- Green light: STA mode is active, and the device is connected to both a Wi-Fi network and the Shelly Cloud.
- Flashing Purple light: device is in Zigbee commissioning mode.
- Flashing Red/Blue light: OTA update is in progress.
- Flashing Yellow light: Device is in identification mode, signaling its presence for user identification.

Alarm Modes

Flood Detection Mode - detects a state change and, if water is present, triggers an immediate alarm to alert you of potential flooding.

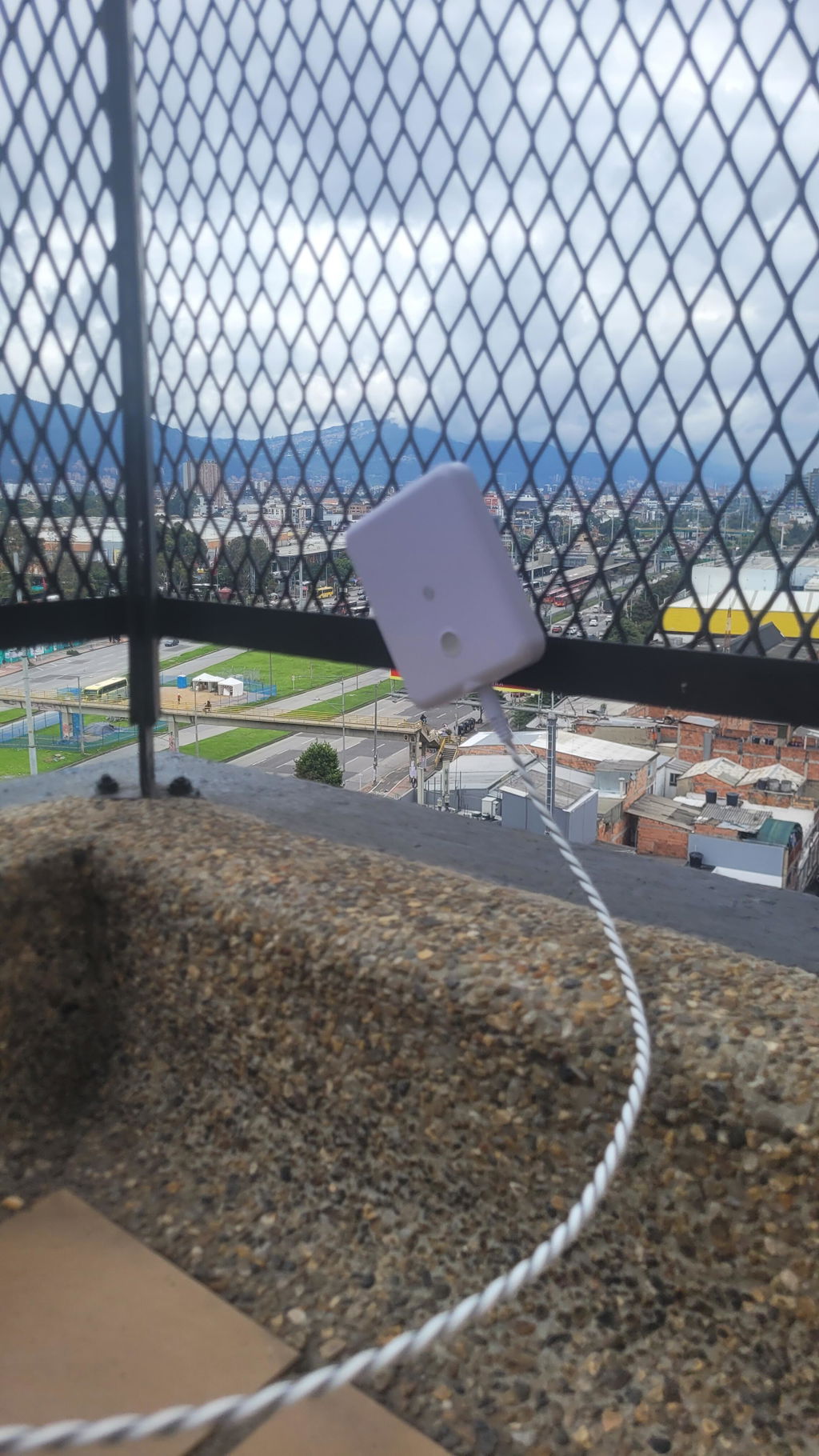

Rain Detection Mode - detects a state change when water is present but does not trigger an alarm, ideal for non-critical scenarios like rain detection.

Mode	Alarm Mode	Report State Frequency*	Buzzer**	Buzzer Mute Conditions	Use Case
Flood	Intense	Every 30 sec for 5 minutes Every 5 minutes for 30 minutes Every 30 minutes once for 1 hour Every 1 hour for 2 hours Every 2 hours indefinitely	ON for 10 minutes Then ON for 1 minute every 5 minutes	No Flood Button single push	Protect extremely valuable assets: Lab Equipment Server Room ...
	Normal (Default)		ON for 5 minutes Then ON for 1 minute every 30 minutes	No Flood Button single push	Normal use
	Economic		Disabled	N/A	Activate when you won’t visit for a while: Vacation Home Mountain Cabin Country Cottage
Rain	-		Disabled	N/A	Automating outdoor areas, such as controlling motorized awning or sprinklers.

*Continue reporting until successful, then sleep. Report again upon flood state change. If multiple reporting channels are configured, success on any channel will be considered a successful report.

**Buzzer pattern: 3.5 sec ON / 1.5 sec OFF

Specifications

Quantity	Value
Physical

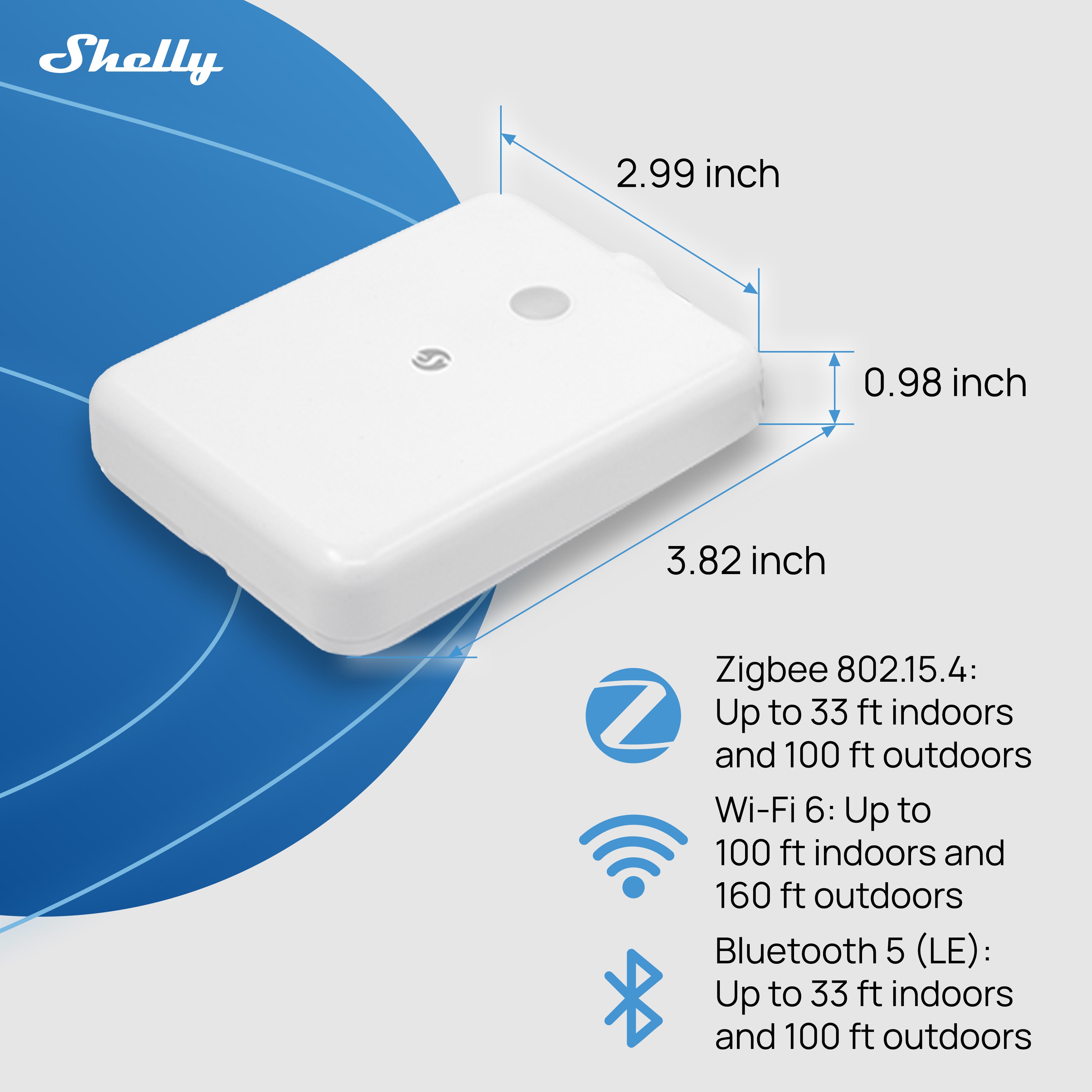

Size (HxWxD):	97x76x25 mm / 3.82x2.99x0.98 inch
Weight:	91 g / 3.21 oz (without batteries) 185 g / 6.53 oz (with batteries)
Mounting:	Wall
Shell material:	Plastic
Shell color:	White
Environmental
Ambient working temperature:	-20°C to 40°C / -5°F to 105°F
Humidity:	30% to 70% RH
Max. altitude:	2000 m / 6562 ft
Electrical
Power supply:	Batteries
Battery type:	4x AA 1.5 V
Estimated battery life:	approx. 2 years (depending on batteries used, device usage, and network connection strength)
Sensors, meters
Leak sensor cable:	2 m, extendable (up to 150 m), attaches via designated port
Radio
Wi-Fi
Protocol:	802.11 b/g/n/ax
RF band:	2401 - 2483 МHz
Max. RF power:	< 20 dBm
Range:	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth
Protocol:	5 (LE)
RF band:	2402 - 2480 MHz
Max. RF power:	< 20 dBm
Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
Zigbee
Protocols:	802.15.4
RF bands:	2405 to 2480 MHz
Max. RF power:	< 20 dBm
Range:	Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions)
Microcontroller unit
CPU:	ESP-Shelly-C68F
Flash:	8 MB
Firmware capabilities
Schedules:	No
Webhooks (URL actions):	10 with 2 URLs per hook
Scripting:	No
MQTT:	Yes
UDP:	Yes
KVS (Key-Value Store):	Yes

Shelly Smart Control

Adding the device to the Shelly Smart Control

Troubleshooting

Q: Why doesn’t the Shelly Flood Gen4 detect a flood instantly?
A: To extend battery life, the Shelly Flood Gen4 checks for changes in flood status every 5 seconds. This slight delay balances prompt detection with optimal power efficiency.

Q: What can cause the Shelly Flood Gen4 to trigger false alarms?
A: The sensor cable may be touching conductive surfaces such pipes, rails, or other metal objects. High humidity with condensation can also trigger false alarms.

Q: How can false alarms be prevented in high-humidity environments?
A: You can increase the State hold time. Its value is set to zero by default and can be increased up to 60 seconds. With this setting, the flood state changes only if the same state is maintained for the defined period.
