Professional 2-channel DIN rail smart dimmer with power monitoring
Suitable for home and facility automation with remote control. DIN-rail mountable inside a breaker box. Enhanced safety features.
*A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.
5
5 Years Manufacturer Warranty
5 Years Manufacturer Warranty
This warranty covers any issues with the hardware or firmware that exist at the time of purchase or that appear within the warranty period. The warranty includes all parts of the hardware, such as the body, mechanics, and display (if applicable). However, it does not cover consumable items like batteries or accessories, as their lifespan depends on how much they are used.
Typically used for:
Dimming
Energy saving
Power measurement
Couldn't load pickup availability
Key Features
Dimming type: Trailing edge
Power measurement
Automatic dimming calibration
Switch/button input mode
Use with your existing switches (one/dual button control)
Adjustable min/max brightness
Adjustable button fade rate and transition time
DIN-rail mountable
Extremely low power consumption: < 0.3 W
Z-Wave frequency band: 908.4 MHz
Latest technology: Z-Wave 800 Series
Automatic set-up with SmartStart
Security 2 Authenticated for the highest level of security
Over-the-air firmware updates
Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices

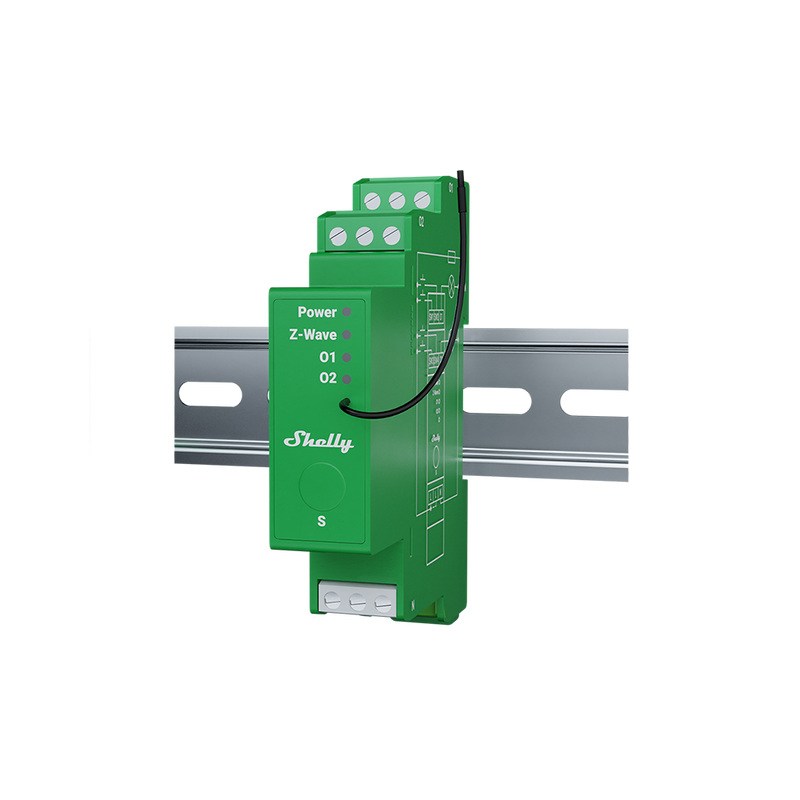

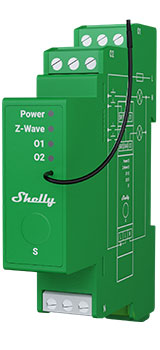

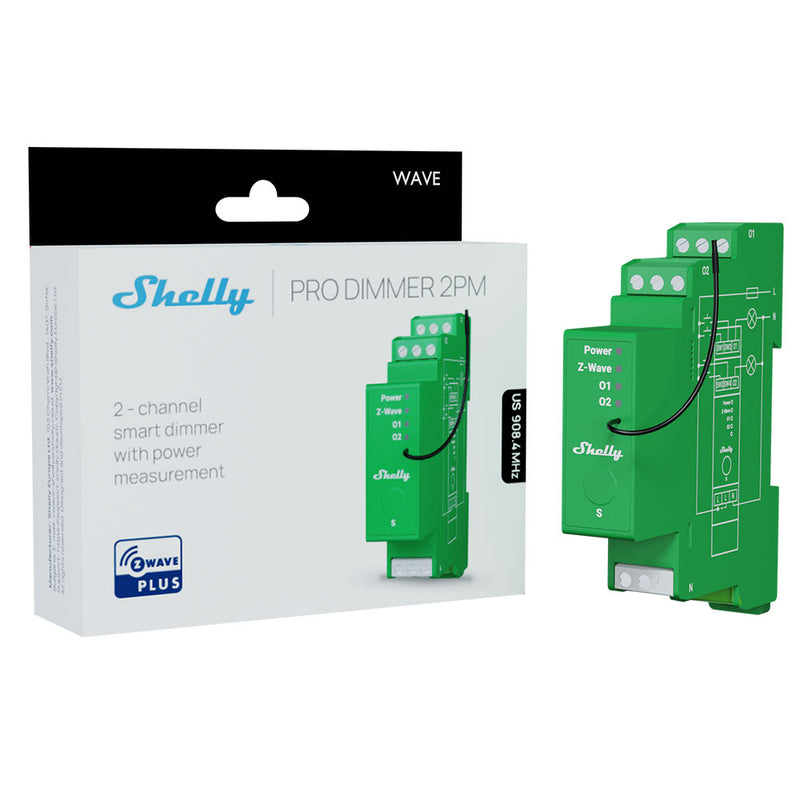

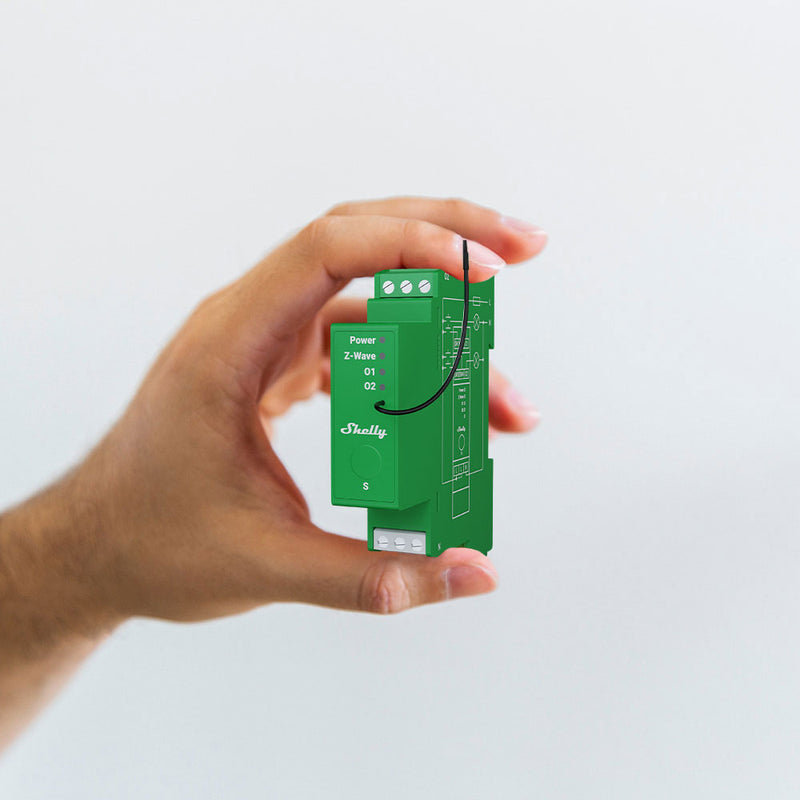

Shelly Wave PRO Dimmer 2PM (US)
Device identification
Device: Shelly Wave Pro Dimmer 2PM (US) US Part number/Ordering Code: QPDM-0A2P01US Z-Wave Product type ID: 0x0001 Z-Wave Product ID: 0x0082 Z-Wave Manufacturer: Shelly Europe Z-Wave Manufacturer ID: 0x0460
Terminology
Click to hide/unhide
OTA - Over-The-Air firmware update.
FW - Firmware
ZAF - Z-Wave® protocol
NIF - Node Information Frame; the frame that is sent at every adding (inclusion) to present/advertise the Device’s capability to the gateway, so that it may adjust its operating ability.
CC - Command Class (ZAF centerpiece of interoperability). The files/processes that determine how data is sent and handled/received. Command Classes include their signatures while sending data to allow recognition of which process is sending data for the destination device.
Switch - A toggle switch or a bi-stable switch.
Push-button - A momentary switch or a monostable switch.
Switch/push-button - It can be a switch or a push-button.
Double press - If the delay between the first and the second press on the switch/push-button is less than 500 ms, this is interpreted as a double press.
Gateway (GW) - A Z-Wave® gateway, also referred to as a Z-Wave® controller, Z-Wave® main controller, Z-Wave® primary controller, or Z-Wave® hub, etc., is a device that serves as a central hub for a Z-Wave® smart home network. The term “gateway” is used in this document.
Mesh network - devices can communicate with each other in addition to the gateway. Devices (only mains powered) can act as repeaters to extend network.
