Why Shelly Pro 3EM?

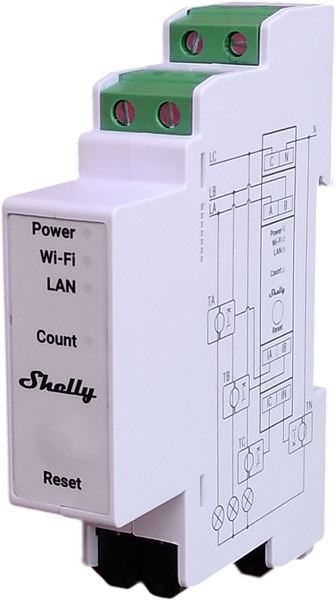

Shelly Pro 3EM
Regular price
$128.99
Sale price
$128.99
Regular price
Unit price
per
In stock
Typically used for:
Energy saving
Power monitoring
PV systems
EV charger
3-Phase Energy Meter with LAN, Wi-Fi and Bluetooth. Monitor the consumption of any home appliance, electric circuits and office equipment individually with active energy measurement accuracy of 1%.
5 Years Manufacturer Warranty
5 Years Manufacturer Warranty
This warranty covers any issues with the hardware or firmware that exist at the time of purchase or that appear within the warranty period. The warranty includes all parts of the hardware, such as the body, mechanics, and display (if applicable). However, it does not cover consumable items like batteries or accessories, as their lifespan depends on how much they are used.
Learn more
Typically used for:
Energy saving
Power monitoring
PV systems
EV charger
All orders are shipped from the US
Free shipping on orders over $50.00 within the US
Key Features
-
can measure up to 120A per phase and the neutral
-
4 quadrant measurement with multiple connection types
-
Accuracy Class B active energy (Compliance with IEC 62053-21 based on manufacturer testing)
-
Photovoltaic ready
-
Phase sequence error detection (option)
-
Optical pulse indication of energy usage
-
Measurement accuracy tо 1%
-
Stores data in non-volatile memory that can be retrieved for a period of up to 60 days in 1-minute intervals
-
Package includes 3 pieces of 120A Current Transformers
features
Industry-grade security
4-quadrant measurement
Measure capacitive and inductive load types of active imported and exported energies.Accuracy class B (active energy)
Shelly Pro 3EM has a measurement accuracy of 1%.MODBUS support
Allows for easy and fast deployment in existing industrial installations.Wi-Fi, LAN, and Bluetooth connectivity
Simultaneous Ethernet and Wi-Fi usage. MQTT, inbound and outbound WebSocket, UDP, mTLS support.Power monitoring
Monitors mono-phase electrical systems with up to 3 points simultaneously. Fast notifications and at least 60 days of 1-minute records storage.Scripting functionalities
Shelly Pro 3PM fully supports mjS scripting, allowing you to create further features and functionalities.
Solutions
Shelly Pro 3EM
Industrial installations
Shelly Pro 3EM brings support for MODBUS for voltage, current, power, and energies. You can accurately sample your energy usage and instantaneous values of voltage, current, and power. Our new firmware platform allows for custom implementation that can report as fast as every 100ms to your infrastructure.
Shelly Pro 3EM brings support for MODBUS for voltage, current, power, and energies. You can accurately sample your energy usage and instantaneous values of voltage, current, and power. Our new firmware platform allows for custom implementation that can report as fast as every 100ms to your infrastructure.
2-way energy consumption monitoring
Monitor your home, office, or factory, and avoid additional expenses or drops in voltage that can damage your appliances and devices. Shelly Pro 3EM can calculate 2-way consumption: produced and used energy for each of the three phases. The device can be configured to measure three separate circuits of a mono-phase electrical system. View the quality of your electricity network regarding active power, reactive power, voltage, and power factor.
Monitor your home, office, or factory, and avoid additional expenses or drops in voltage that can damage your appliances and devices. Shelly Pro 3EM can calculate 2-way consumption: produced and used energy for each of the three phases. The device can be configured to measure three separate circuits of a mono-phase electrical system. View the quality of your electricity network regarding active power, reactive power, voltage, and power factor.
Local control
Thanks to Shelly Pro 3EM's scripting functionalities and webhooks, you can now easily control other Shelly or Wi-Fi devices on your local network. Use these capabilities to set exact parameters for heating, cooling, or electric vehicle charging based on PV production and have your devices automatically shed power usage. All these work without using a cloud.
Thanks to Shelly Pro 3EM's scripting functionalities and webhooks, you can now easily control other Shelly or Wi-Fi devices on your local network. Use these capabilities to set exact parameters for heating, cooling, or electric vehicle charging based on PV production and have your devices automatically shed power usage. All these work without using a cloud.
SHELLY APP
Shelly Smart Control is Free!
Download our free app to manage spaces, monitor energy, and track expenses. Upgrade to Premium for even more features!
