World's smallest Wi-Fi smart meter for precise power monitoring. Install in 10 minutes and monitor appliances up to 16A. Equipped with Shelly chip & all Gen3 features.
3
3 Years Manufacturer Warranty
3 Years Warranty
This warranty covers any issues with the hardware or firmware that exist at the time of purchase or that appear within the warranty period. The warranty includes all parts of the hardware, such as the body, mechanics, and display (if applicable). However, it does not cover consumable items like batteries or accessories, as their lifespan depends on how much they are used.
Typically used for:
Power measurement
Energy saving
Couldn't load pickup availability
Key Features
Equipped with a new processor & increased flash memory - ESP Shelly
Improved durability of terminals
Supports up to 16 A at 240 VAC
Precise and real-time power metering with free cloud data storage for analysis and energy usage optimization.
Wi-Fi range extender & Bluetooth gateway
No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it Home Assistant or your preferred automation platform
Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates *This is only a power meter. There is no relay inside.

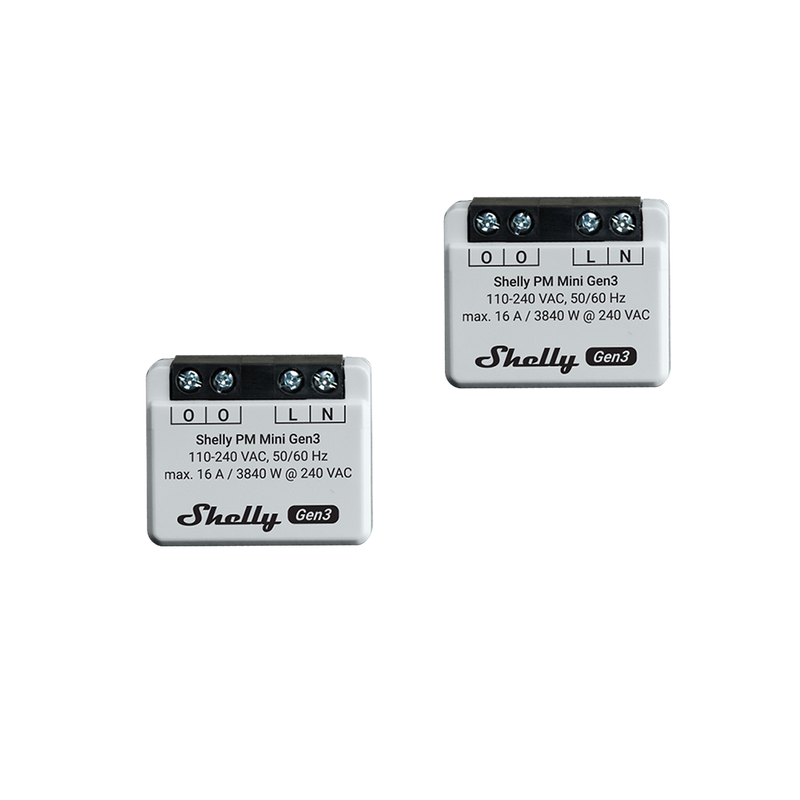

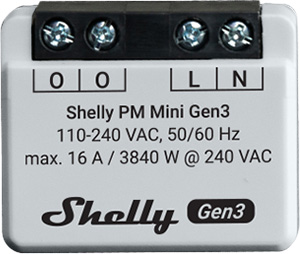

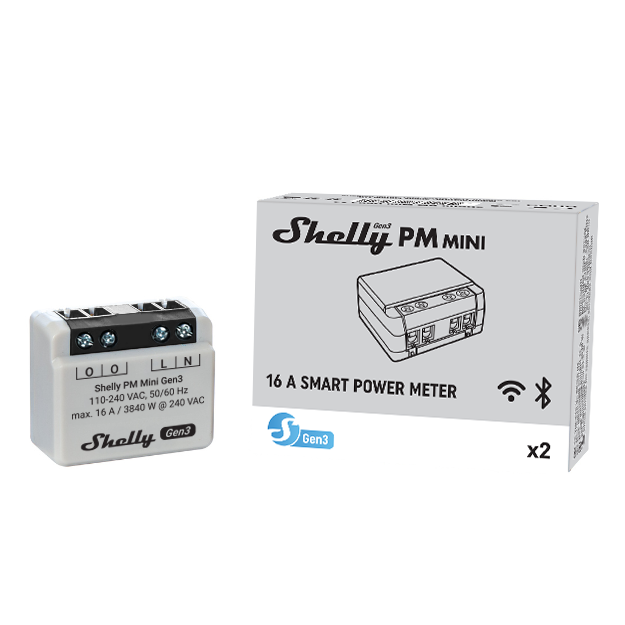

Shelly PM Mini Gen3
Device identification
Device name: Shelly PM Mini Gen3
Device model: S3PM-001PCEU16
Device SSID: ShellyPMMiniG3-XXXXXX
BLE model ID: 0x1023
Short description
Shelly PM Mini Gen3 is a small form factor power meter. Enhanced with all the gen2 firmware flexibility, it provides professional integrators with additional options for end-customer solutions. It can work standalone in a local Wi-Fi network, or it can also be operated through cloud home automation services through MQTT, HTTP, and WebSocket. All inbound connections support TLS. The device is an improved version of Shelly Plus PM Mini with a more advanced processor and increased memory.
Shelly PM Mini Gen3 can be accessed, set up, and monitored remotely by the User, as well as the Device can access and communicate with an automation system, as long as they are in the same network infrastructure.
The Device has an embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.
Main features
Power Meter: Designed as a small form factor power meter, allowing you to monitor the power consumption of connected devices.
Enhanced Firmware Flexibility: Inherits the flexibility of gen2 firmware, providing professional integrators with additional options for end-customer solutions.

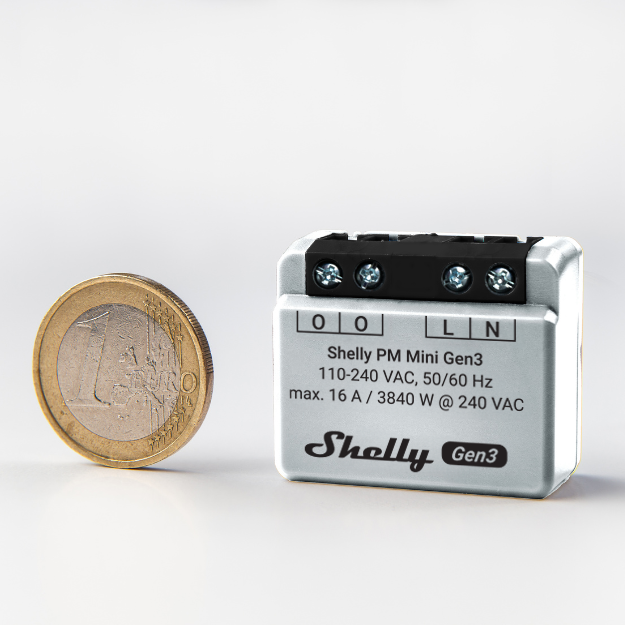

Compact size: PM Mini Gen3 can be connected in very tiny spaces, unreachable for other devices.
Improved Processor and Memory: Upgraded with an improved processor and increased memory for enhanced performance.
Remote Access: Can be accessed, set up, and monitored remotely by the user, as well as communicate with an automation system within the same network infrastructure.
Embedded Web Interface: Features an embedded web interface for monitoring, control, and adjustment of settings.
BLE Gateway: Bridge between your Shelly BLU devices and the wider Shelly ecosystem. It receives Bluetooth signals and sends them to the cloud or locally to another non-bluetooth device.
WiFi Range extender for IoT devices: A WiFi extender is employed to expand the reach of your WiFi network by receiving your current WiFi signal, enhancing its strength, and then transmitting the enhanced signal over a wider area.
Wide range of integrations: The device can be integrated with 3rd party home systems, documented HTTP API, MQTT(s), Web Hooks over HTTP and HTTPS, UDP
Use cases
Power Consumption Monitoring: The primary purpose is to monitor the power consumption of connected devices in real-time. This information can be valuable for understanding energy usage patterns and making informed decisions to reduce consumption.
Energy Efficiency Optimization: Identify energy-hungry appliances and optimize their usage to improve overall energy efficiency in your home or workspace.
Appliance Health Check: Keep track of the power usage of individual appliances to assess their health and performance over time. Sudden spikes or changes in power consumption may indicate issues with the appliance.
Cost Management: With the knowledge of power consumption, you can estimate the cost of running specific devices and manage your electricity expenses more effectively.
Space-Efficient Retrofitting: Integrate the device into standard electrical wall boxes, behind power sockets, light switches, or other locations with limited space.
Remote Monitoring: Like the Shelly 1PM Mini Gen3, the PM Mini Gen3 also supports remote access. This allows you to monitor power consumption even when you're away from home.
Designed with convenience in mind, these mini relayshave all the capabilities of standard switches fit into a compact and space-saving form factor. Despite their small size, the Shelly Mini Gen3 devices don't compromise on performance or functionality. Equipped with our powerful Shelly chip featuring 8MB of memory, device efficiency and responsiveness are significantly improved, guaranteeing smoother and faster operation.
why shelly pm mini gen3?

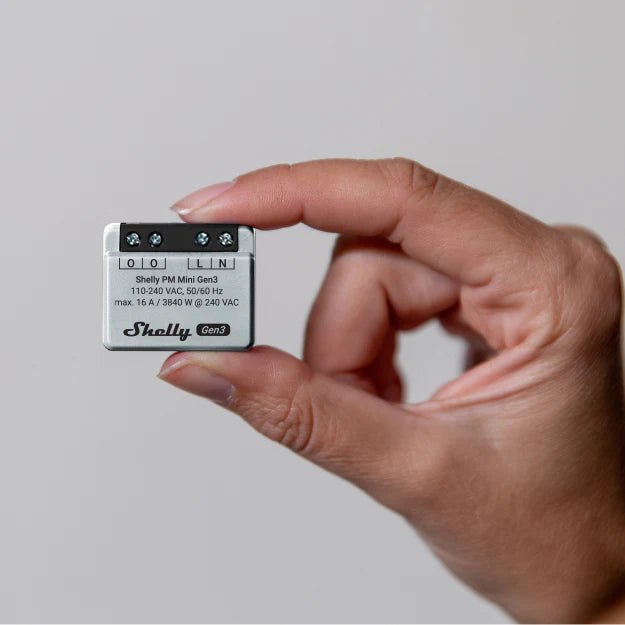

Size does matter!
Shelly Mini Gen3 devices open up a world of possibilities, allowing you to seamlessly integrate them into even the most tightly packed spaces and switch boxes.
Wi-Fi Operated
Connect Shelly PM Mini Gen3 to your Wi-Fi network. No HUB required!
Bluetooth
Quick inclusion via Bluetooth or use it as a Bluetooth gateway.
Power Monitoring
Provides precise metering of power consumption and helps you save.
Smart Schedules
Set custom schedules based on your daily agenda or follow the sunrise/sunset and control your lighting accordingly.
URL Actions
Let Shelly PM Mini Gen3 directly control other smart devices.
Scripting
Shelly PM Mini Gen3 fully supports mjS scripting, allowing you to create custom features and functionalities.
Solutions
Shelly PM Mini Gen3
Preventative monitoring
When an electrical appliance is damaged, it doesn't simply stop working. Usually, it increases the amount of energy used in an attempt to compensate for its operational capacity. Since there is no visible difference in its performance, it might take months before you can identify a problem, leading to inefficiency and wasted energy. Shelly PM Mini Gen3 will fit anywhere you need it to and can immediately report the increase in energy consumption, saving you additional expenses on repairs or equipment replacement.
Power consumption analysis for cost optimization
All connected electrical appliances we don't use during the night or forgotten switched-on lights generate unnecessary energy. Shelly PM Mini Gen3's smart energy metering will help you identify and eliminate any redundant energy consumption from each connected appliance around your home or facility. Together with smart scenes, you can use Shelly PM Mini Gen3's data to set off scenarios, such as turning off appliances during a spike to protect them or during the night to save energy.
Gen3 Series features
On the Road to Matter
Each Gen3 device is engineered to be upgradable to Matter. The doubled memory, compared to Plus series, guarantees a smooth update process, paving the way for new smart capabilities and integrations.
*Dependent on the extent of Matter's functionalities support.
More Memory, More Power
The Gen3 series ensures the quality and reliability of our devices by using our own powerful Shelly chip. Boasting 8MB of memory, this dramatically improves device performance and efficiency.
Unified Control with Virtual Components
The Gen3 Series introduces “virtual components, transforming how you manage and control 3rd party devices. Within the Shelly Smart Control app, you can now create virtual devices, integrating non-Shelly products into a unified control system.
On the Road to Matter
Each Gen3 device is engineered to be upgradable to Matter. The doubled memory, compared to Plus series, guarantees a smooth update process, paving the way for new smart capabilities and integrations.
*Dependent on the extent of Matter's functionalities support.
More Memory, More Power
The Gen3 series ensures the quality and reliability of our devices by using our own powerful Shelly chip. Boasting 8MB of memory, this dramatically improves device performance and efficiency.
Unified Control with Virtual Components
The Gen3 Series introduces “virtual components, transforming how you manage and control 3rd party devices. Within the Shelly Smart Control app, you can now create virtual devices, integrating non-Shelly products into a unified control system.

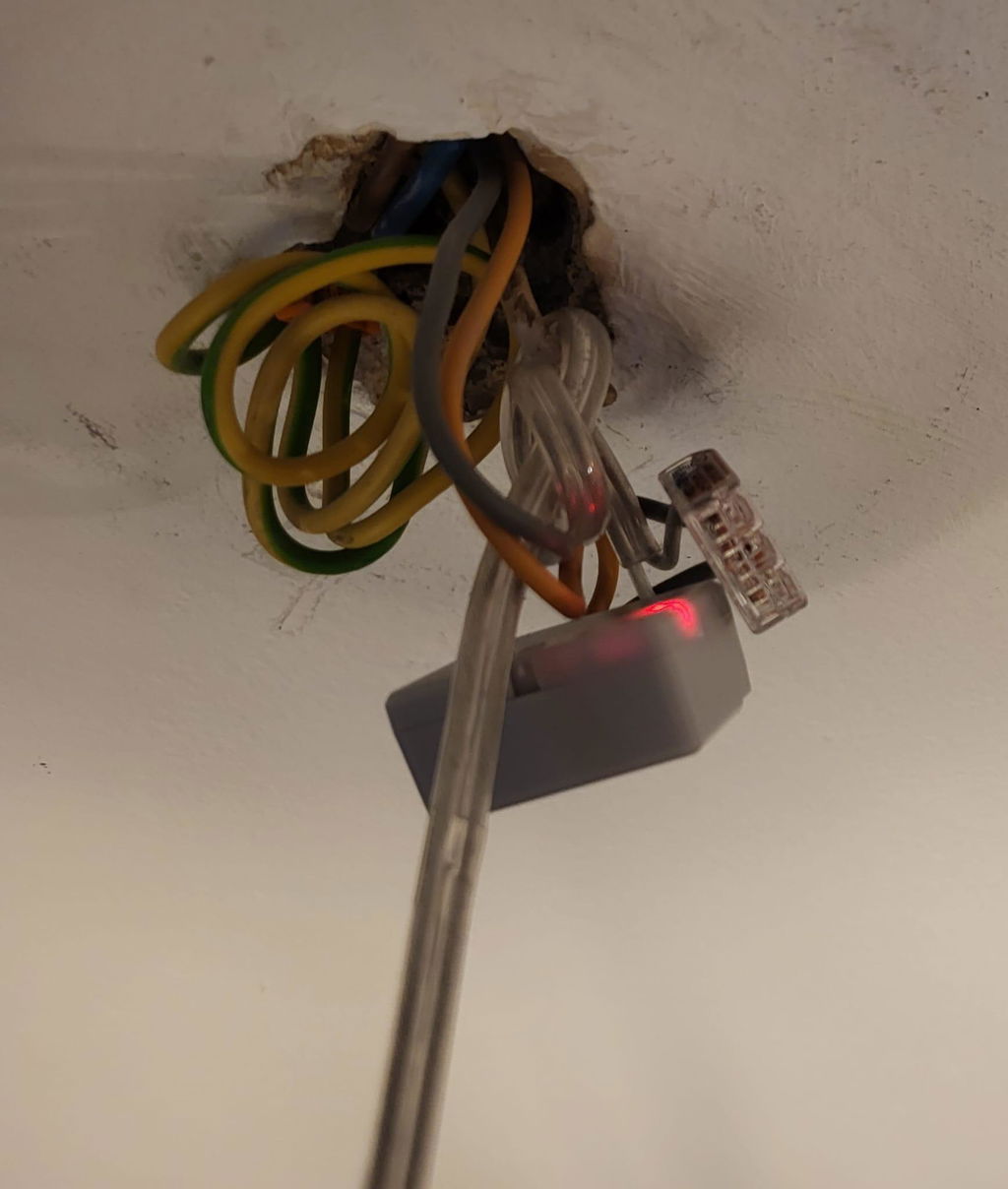

Fits everywhere!
Danish switch boxes
Inside appliances
Jammed switch boxes
Danish switch boxes
Inside appliances
Jammed switch boxes
SHELLY APP
Shelly Smart Control is Free!
Download our free app to manage spaces, monitor energy, and track expenses. Upgrade to Premium for even more features!
