Smart dimming controller with power measurement. Provides support for 0-10V and 1-10V types of drivers.
3
3 Years Manufacturer Warranty
3 Years Warranty
This warranty covers any issues with the hardware or firmware that exist at the time of purchase or that appear within the warranty period. The warranty includes all parts of the hardware, such as the body, mechanics, and display (if applicable). However, it does not cover consumable items like batteries or accessories, as their lifespan depends on how much they are used.
Typically used for:
Power monitoring
LED strips
Dimming
Couldn't load pickup availability
Key Features
Supports 0-10V and 1-10V types of drivers (lights, motors, valves, etc.
Wi-Fi and Bluetooth-operated
Shelly Plus Add-On compatible: Supports connection with the sensor interface to measure different data (humidity, temperature, etc)
One/dual button dimming mode (use with physical switches)
Customizable thresholds and offsets for temperature, humidity and light if used with Plus Add-on
Power measurement: Precise monitoring of energy consumption. Information about voltage (V), current (A) and consumption (W) is displayed.
Safety: Оver current/voltage/power protections
Supports “Night mode”: Automatically sets the lights' brightness at a low level during the night hours
Wi-Fi Range Extender & BLE Gateway
Equipped with a new processor & increased flash memory - ESP Shelly
No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform.
Supports KNXnet / IP communication

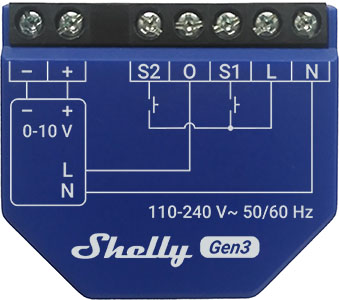

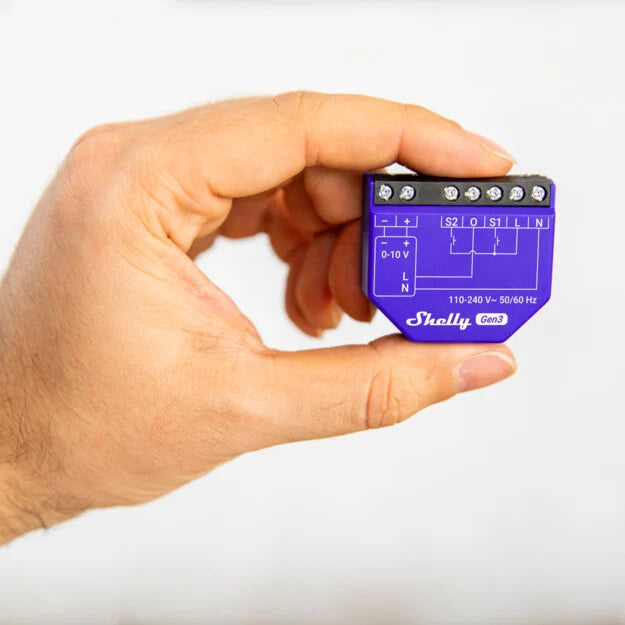

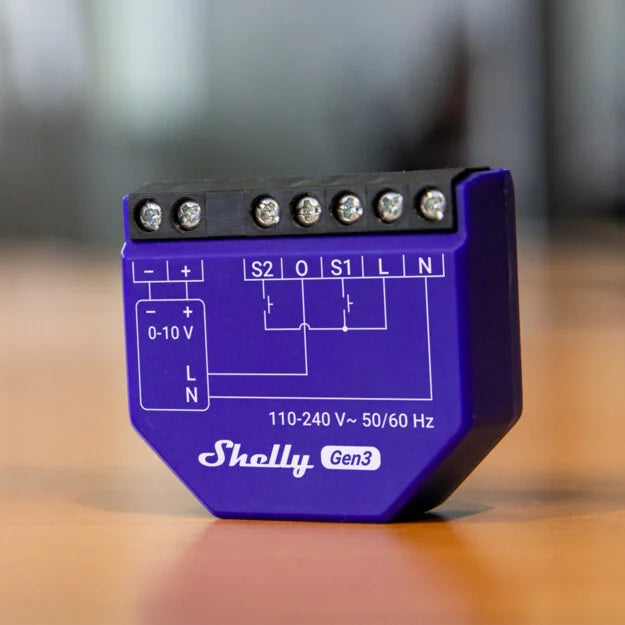

Shelly Dimmer 0/1-10V PM Gen3
Device image
Device identification
Device name: Shelly Dimmer 0/1-10V PM Gen3
Device model: S3DM-0010WW
Device SSID: Shelly0110DimG3-XXXXXXXXXXXX
BLE Model ID: 0x1072
Short description
Shelly Dimmer 0/1-10V PM Gen3 (the Device) is a smart dimming controller which allows remote control dimming drivers through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services. The device is a current sourcing controller and provides support for 0-10V and 1-10V types of drivers.
Main features
Bluetooth: The Device complies the Bluetooth standard and can connect with other Bluetooth devices to exchange data in short range.
BLE Gateway: Facilitates communication between BLE and Wi-Fi-enabled devices.
Wi-Fi: The Device can connect to a wireless network.
Wi-Fi Range extender: Retransmits the Wi-Fi signal and extends its reach.
Scripting: Allows creating automation scenarios through scripts.
