Analog 0-30 V Add-on (Accessory for The Pill by Shelly)

$6.99
$6.99
Shipping calculated at checkout.
New
Out of stock

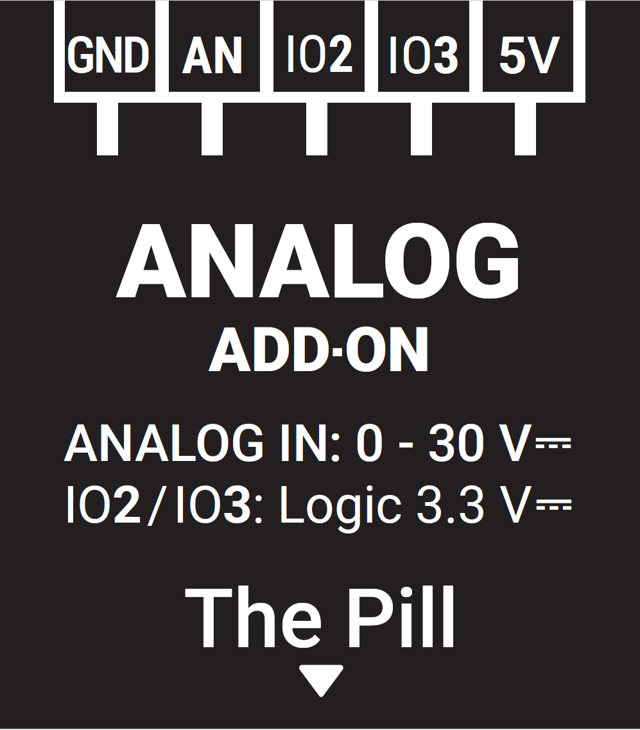

  • A compact black and green Analog 0 - 30V Add-on (Shelly Pill) module by Shelly USA, with labeled pins for GND, AN, IO2, IO3, and 5V, plus printed input voltage range details on its surface.
  • A black and green Shelly USA Analog 0 - 30V Add-on (Shelly Pill) module, labeled with terminal connectors on top and bottom, featuring analog and logic voltage markings.
  • A compact black and green Shelly USA Analog 0–30V Add-on (Shelly Pill) electronic module with six orange and green terminal connectors for analog signal input or output.

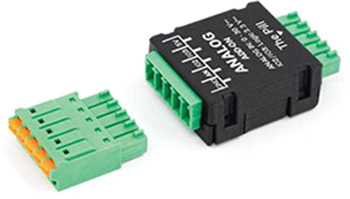

  • The Shelly USA Analog 0 - 30V Add-on (Shelly Pill) is a black electronic module with green terminal blocks and a separate green connector with orange pins, both shown on a white background.
  • A person holds a Shelly USA Analog 0 - 30V Add-on (Shelly Pill) above a green cutting mat with grid lines, with wires and a USB cable connected to the device.
  • Two hands on a green cutting mat connect wires from a black battery holder to the Shelly USA Analog 0-30V Add-on (Shelly Pill) and a USB cable using alligator clips and connectors.
  • A Shelly USA Analog 0-30V Add-on (Shelly Pill) is connected to a black battery via red and black wires, with a white cable plugged into a USB adapter, all set on a dark surface.
Analog 0-30 V Add-on (Accessory for The Pill by Shelly)
$6.99
$6.99
Shipping calculated at checkout.
Out of stock
Add-on module for The Pill by Shelly that measures analog sensors and DC voltages up to 30 V. Ideal for monitoring batteries, power supplies, and other low-voltage devices.

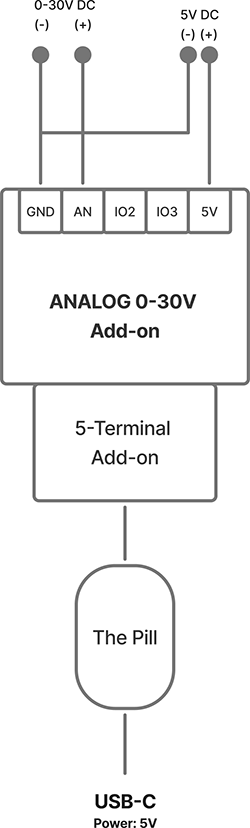

*The Analog 0-30 V Add-on is sold separately and requires the 5-Terminal Add-on to connect with The Pill by Shelly.
2
2 Years Warranty
2 Years Warranty

This warranty covers any issues with the hardware or firmware that exist at the time of purchase or that appear within the warranty period. The warranty includes all parts of the hardware, such as the body, mechanics, and display (if applicable). However, it does not cover consumable items like batteries or accessories, as their lifespan depends on how much they are used.

Learn more
All products are developed to strict security standards
All orders are shipped from the US
Free Delivery Icon Free shipping on orders over $50.00 within the US
The Shelly USA Micro USB to 5 Terminal Add (Shelly Pill) is a black cable with a micro USB connector on one end and a green screw terminal block on the other, shown on a plain white background.
New
5-Terminal Add-on (Accessory for The Pill by Shelly)
Adds power, ground, and three configurable I/O terminals to The Pill by Shelly for sensor and control connections.
$7.99
$7.99
NEW
Interface module for The Pill by Shelly providing power, ground, and three configurable I/O terminals. Perfect for connecting sensors, buttons, or other control elements in any setup.
Adds power, ground, and three configurable I/O terminals to The Pill by Shelly for sensor and control connections.
The Pill by Shelly from Shelly USA is a compact, glossy white rectangle with rounded edges and a central circular indentation, displayed on a plain white background.
New
The Pill by Shelly
$12.99
$12.99
NEW
Compact USB-C powered Wi-Fi and Bluetooth device that connects to various sensors and low-voltage peripherals for monitoring and control of temperature, humidity, voltage, and digital I/O.
Sensor data
Temperature
Humidity
Appliances
Scene activation
Key Features
  • Measurement range: 0-30 V DC
  • Extends The Pill’s measurement range for sensors and batteries
  • Compatible via 5-Terminal Add-on
  • 1 Analog Input (AN) + 2 configurable Digital IOs (3.3 V logic)
  • 5 V power output for connected sensors
Knowledge Base A blue outline icon of an open book with a trophy placed on top, symbolizing achievement or success in education or learning.
View full details
Why Analog 0-30 V Add-on (Accessory for The Pill by Shelly)

Empower your projects with wider measurement possibilities

Analog 0-30 V Add-on expands The Pill by Shelly’s measurement capabilities, allowing accurate readings from a wide range of DC sources. Use it to track sensor outputs, monitor batteries, or integrate low-voltage systems into your projects with confidence and precision.
