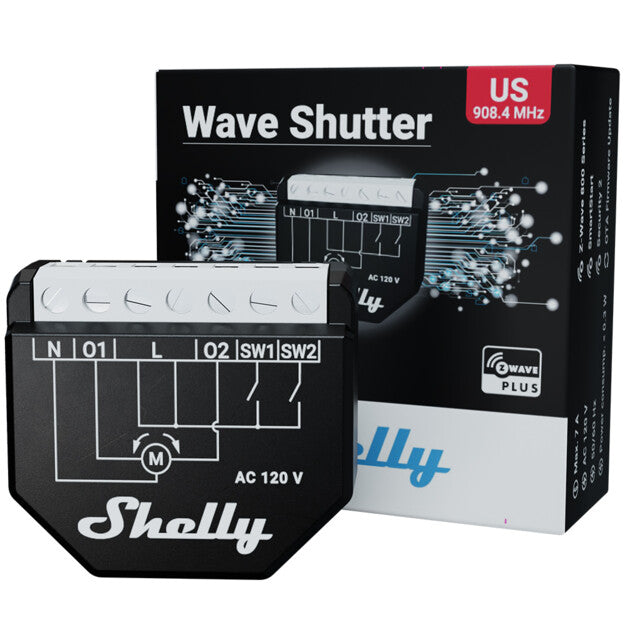

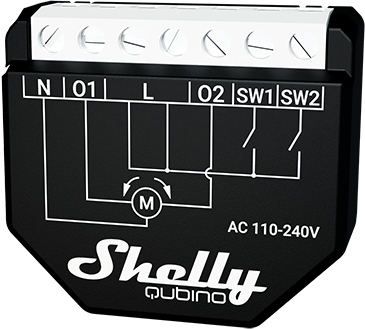

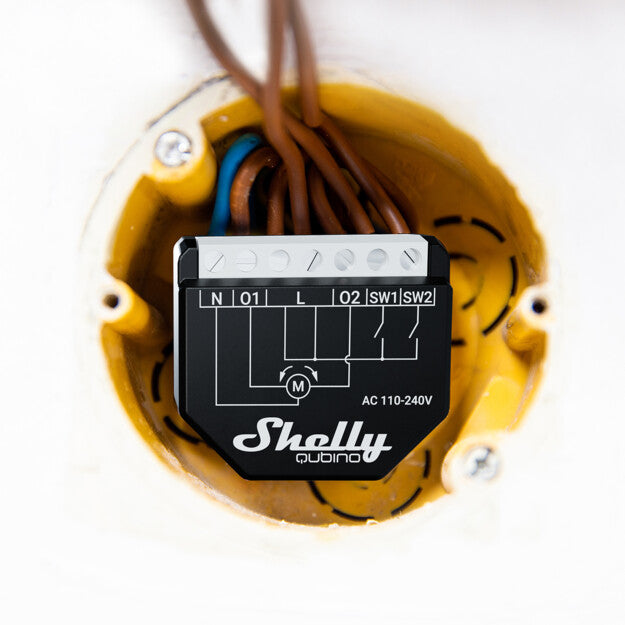

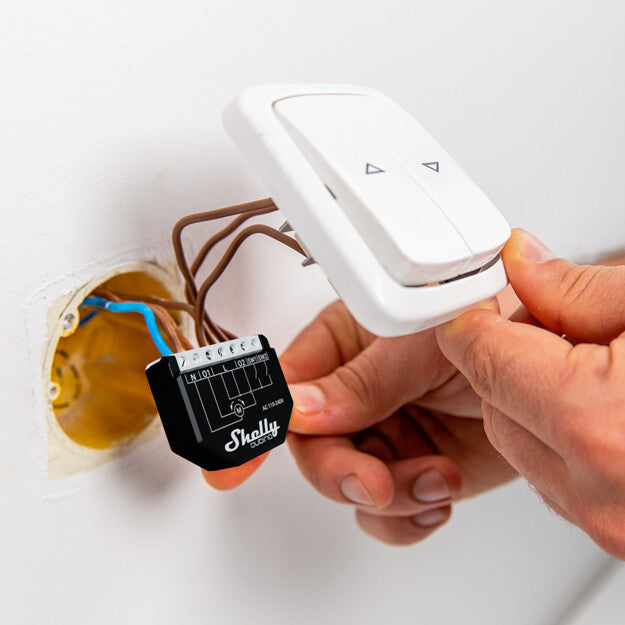

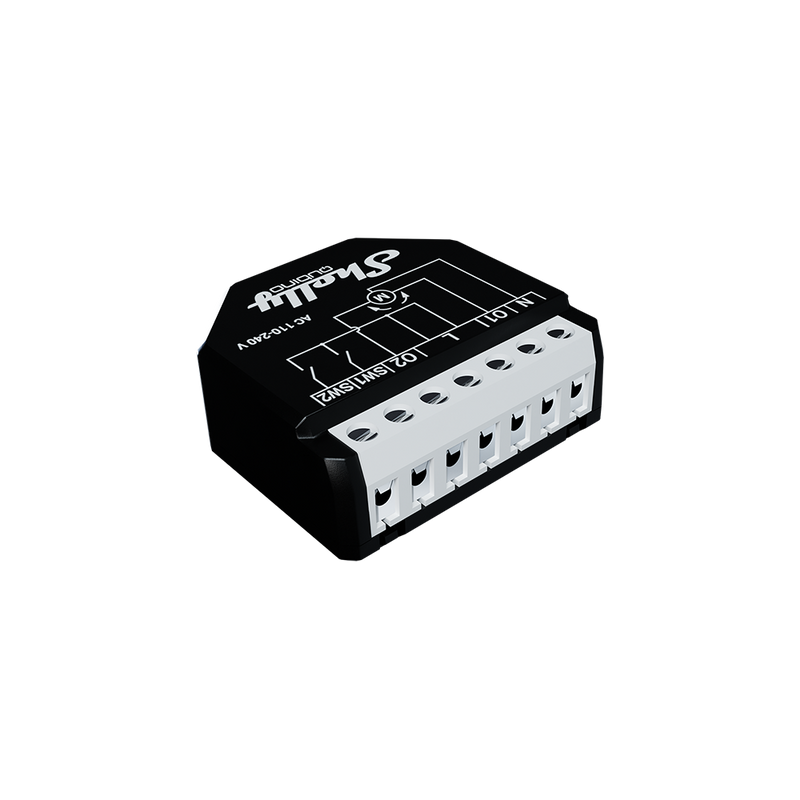

Shelly Wave Shutter

Name: Shelly Wave Shutter
Brand: Shelly
SKU: 3800235269190
Price: 31.49 USD
Availability: InStock

Note: The product line known as "Shelly Qubino Wave" will now be referred to as "Shelly Wave". This name change will not impact the functionality of any devices. The only modification will be the use of the new name in all future documentation.

Device: Wave Shutter

EU Part number/Ordering Code: QNSH-001P10EU
Z-Wave Product type ID: 0x0003
Z-Wave Product ID: 0x0082
Z-Wave Manufacturer: Shelly Europe Ltd.
Z-Wave Manufacturer ID: 0x0460

Terminology

Device - In this document, the term Device is used to refer to the Shelly Qubino device that is a subject of this guide.
Gateway - A Z-Wave® gateway, also referred to as a Z-Wave® controller, Z-Wave® main controller, Z-Wave® primary controller, or Z-Wave® hub, etc., is a device that serves as a central hub for a Z-Wave® smart home network. The term gateway is used in this document.
S button - The Z-Wave® Service button, located on Z-Wave® devices and is used for various functions such as adding (inclusion), removing (exclusion), and resetting the device to its factory default settings. The term "S button" is used in this document.
Adding/Inclusion - The process of adding Z-Wave device to a Z-Wave network - gateway. The words included, added, etc. are used in this regard.
Removing/Exclusion - The process of removing Z-Wave device from a Z-Wave network - gateway. The words excluded, removed, etc. are used in this regard.
Blind - Refers to any kind of window treatment, such as venetian blinds, roller blinds (screens), roller shutters, vertical window blinds, curtains, integral venetian blinds, pleated blinds, awnings, etc. Additionally, Wave Shutter can also control window motors, projector screens, or any type of bi-directional AC motor (Wave Shutter DC control any kind of bi-directional DC motor).

Short description

The Device enables remote control of motorised blinds, roller shutters, venetian blinds, awnings, etc. It measures power consumption of the connected device.

It is recommended to use only motors for blinds with electronic or mechanical limit switches. Motor limit switches must be set correctly before connecting the Device to the motor.

Manual operation for Shutter

click here to expand the details fo the manual operational instructions

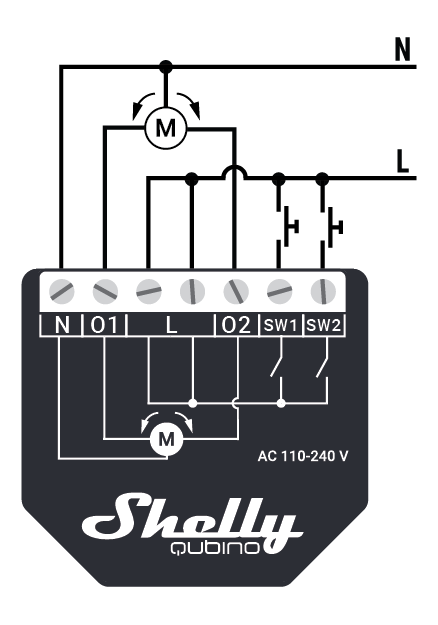

Manual operation for Shutter with momentary switch

Parameter No. 71 set to 0 and Parameter No. 1 set to 0.

Pressing the push-button connected to SW1 (up) for less than 0,5 second (short press) will initiate the upward movement.

Pressing the push-button connected to SW2 (down) for less than 0,5 second (short press) will initiate the downward movement.

If the Shutter is moving, any press (on any push-button) will stop the movement.

Pressing the push-button connected to SW1 (up) for more than 0,5 second (long press) will initiate the upward movement until the push-button is released.

Pressing the push-button connected to SW2 (down) for more than 0,5 second (long press) will initiate the downward movement until the push-button is released.

Action on push-button	Blind is not moving	Blind is moving up	Blind is moving down	Tilting the slats of venetian blind is ongoing
Short press (less than 0,5 seconds) in the UP direction	Starts moving the blind upwards	Stops moving the blind	Stops moving the blind	No action
Short press (less than 0,5 seconds) in the DOWN direction	Starts moving the blind downwards	Stops moving the blind	Stops moving the blind	No action
Press and hold (longer than 0,5 seconds) in the UP direction	Starts moving the blind upwards. In case of venetian blinds, this also includes tilting the slats.	Moving	Moving	Tilting the slats to the end and then moving the blind UP
Press and hold (longer than 0,5 seconds) in the DOWN direction	Starts moving the blind downwards. In case of venetian blind, this also includes tilting the slats.	Moving	Moving	Tilting the slats to the end and then moving the blind DOWN
Release the push-button after a long press	No action	Stops moving the blind	Stops moving the blind	Stops tilting the slats

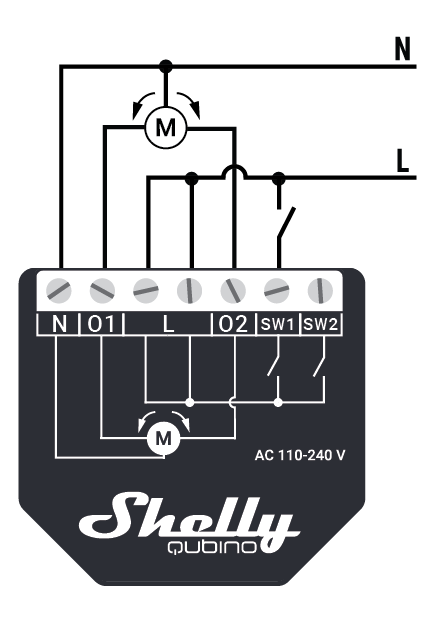

Manual operation for Shutter with a toggle switch

Parameter No. 71 set to 0 and Parameter No. 1 set to 1.

Pressing the toggle switch connected to SW1 (up) will initiate the upward movement until the toggle switch is released.

Pressing the toggle switch connected to SW2 (down) will initiate the downward movement until the toggle switch is released.

Manual operation for venetian blinds with a momentary switch

Parameter No. 71 set to 1 and Parameter No. 1 set to 0.

General rules:

Short press (< 0,5 seconds) initiates the blind movement
Long press (> 0,5 seconds) initiates the slats movement

Pressing the push-button connected to SW1 (up) for less than 0,5 second (short press) will initiate the upward movement.

Pressing the push-button connected to SW2 (down) for less than 0,5 second (short press) will initiate the downward movement.

If the Shutter is moving, any press (on any push-button) will stop the movement.

Pressing the push-button connected to SW1 (up) for more than 0,5 second (long press) will initiate the slats rotation (0 to 100%) until the push-button is released or the end rotation position is reached. The rotation time is defined in the Parameter No. 72.

Pressing the push-button connected to SW2 (down) for more than 0,5 second (long press) will initiate the slats rotation (100 to 0%) until the push-button is released or the end rotation position is reached. The rotation time is defined in the Parameter No. 72.

Action on push button	Blind is not moving	Blind is moving up	Blind is moving down	Tilting the slats of venetian blind is ongoing
Short press (less than 0,5 seconds) in the UP direction	Starts moving the blind upwards	Stops moving the blind	Stops moving the blind	Stops tilting the slats
Short press (less than 0,5 seconds) in the DOWN direction	Starts moving the blind downwards	Stops moving the blind	Stops moving the blind	Stops tilting the slats
Press and hold (longer than 0,5 seconds) in the UP direction	Starts tilting the slats	No action	No action	Tilting the slats until the rotation is complete
Press and hold (longer than 0,5 seconds) in the DOWN direction	Starts tilting the slats	No action	No action	Tilting the slats until the rotation is complete
Release the button after long press	No action	Stops moving the blind	Stops moving the blind	Stops tilting the slats

Manual operation for venetian blinds with a toggle switch

Parameter No. 71 set to 1 and Parameter No. 1 set to 1.

Pressing a toggle switch connected to SW1 (up) will initiate the upward movement, until the toggle switch is released.

Pressing a toggle switch connected to SW2 (down) will initiate the downward movement, until the toggle switch is released.

When the slats are at 100% position and the UP is pressed quickly, the blind will move up.

When the slats are at 0% position and the DOWN is pressed quickly, the blind will move down.

Slats positioning

To reach the maximum precision of the slats positioning when the blind is stopped by a push-button, gateway or when controlled by a gateway the slats will perform additional movement described below.

When the slats are set in any intermediate position and receive the command for a different position, the slats always move to the 100% position first and then back to the set position.

When the blind is moving DOWN, the slats are at 0% position. When the limit switch is reached, or the blind is stopped by a push-button or a gateway, the slats rotate to 100% and then move to the previous position (same as before the movement started).

When the blind is moving UP, the slats are at 100% position. When the blind is stopped by a push-button or a gateway, the slats rotate to the previous position (same as before the movement started).

Main applications

Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
Government/municipal
University/college

Integrations

Shelly Qubino Wave devices are developed on the world's leading technology for smart homes Z-Wave.

This means Shelly Qubino Wave works with all certified gateways supporting Z-Wave communication protocol.

To make sure the functions of Shelly Qubino Wave products are supported on your gateway, we are regularly executing compatibility tests of our devices with different Z-Wave gateways.

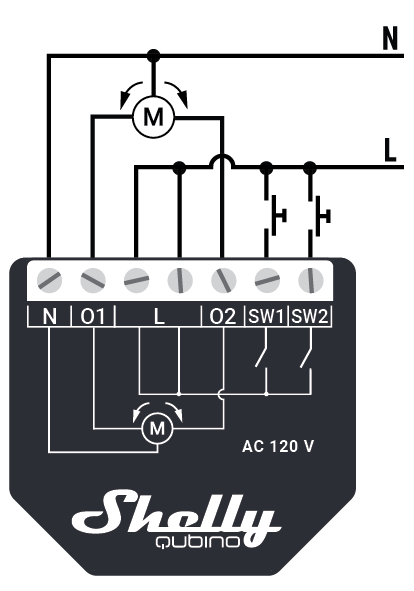

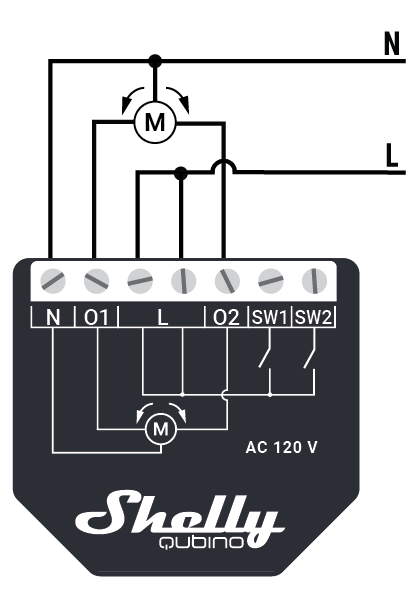

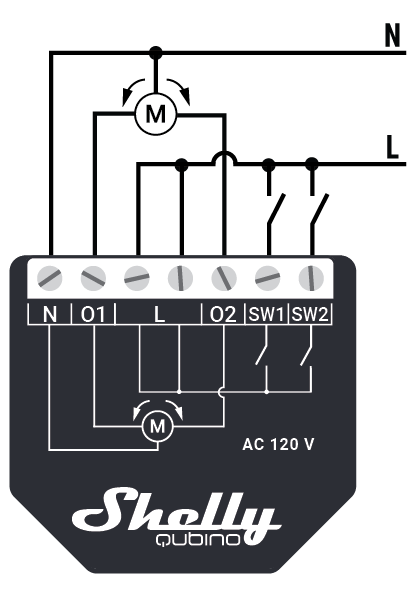

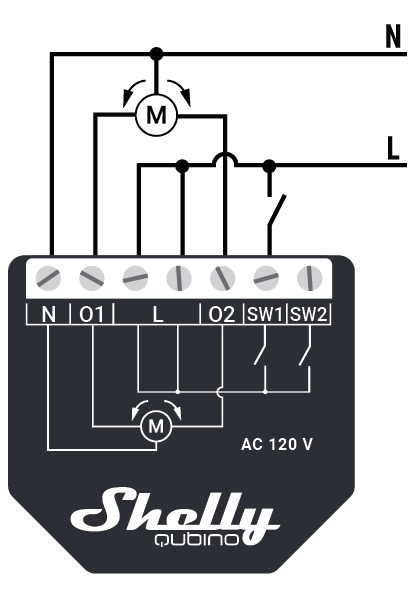

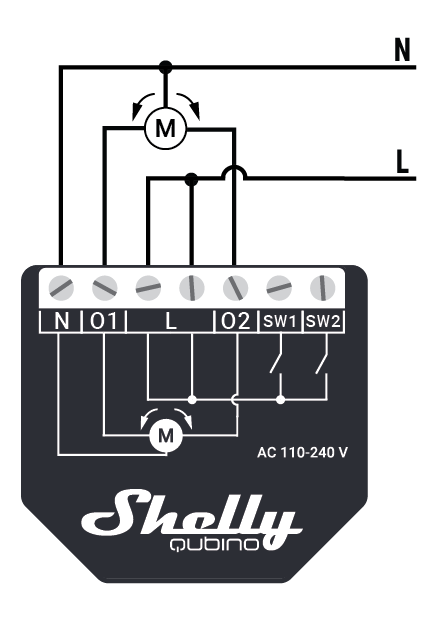

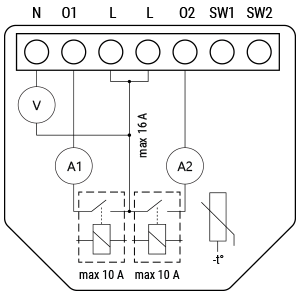

Simplified internal schematics

Device electrical interfaces

Inputs

2 switch/button input on screw terminal
3 power supply inputs on screw terminals: N and L

Outputs

2 relay output with power measurement on screw terminal

Connectivity

Z-Wave - Unsecure, S0 Security, S2 Unauthenticated Security, S2 Authenticated Security

Safety features

Over-load detection

Overheat detection

Supported load types

Resistive (incandescent bulbs, heating devices)
Capacitive (capacitor banks, electronic equipment, motor start capacitors)
Inductive with RC Snubber (LED light drivers, transformers, fans, refrigerators, air-conditioners)

User interface

S button and operating modes

Normal mode
Setting in progress mode
Setting mode (with S button)
- Settings mode is required to start desired procedure for example: adding (inclusion), removing (exclusion), factory reset etc. It has a limited time of operation. After the procedure in Setting mode is concluded, the Device goes automatically into Normal mode.
- Entering to Setting mode:
  - Quickly press and hold the S button on the Device until the LED turns solid blue
  - An additional quick press on the S button means menu change in infinite loop
  - Menu LED status has a timeout of 10s before entering again into Normal state

S buttons functions

Manually adding the Device to a Z-Wave network
Manually removing the Device from a Z-Wave network
Factory Reset the Device

Functionality

Automatic calibration is a process during which the Device learns the position of the limit switches.

Note! For the correct position operation, the Device must perform a calibration procedure!

Note! The motor must be equipped with electronic or mechanical limit switches and the limit positions must be set correctly before calibration!

Shutter positioning calibration (Shutter mode)

Parameter No. 71 set to 0.

Calibration with the gateway

3-> default setting (after factory reset) - Parameter 78

1-> start calibration

2-> device is calibrated

3-> device is not calibrated

4-> calibration error

Start calibration:

Add the Device to the Z-Wave network according to the instructions for inclusion.
Set the Parameter No. 78 (forced Shutter calibration) value to 1.
The Device performs the calibration process, completing a full cycle up, down, up, and down to 50%.
Check the Parameter No. 78 to see if the calibration was successfully executed (value 2).
Make sure that the yellow LED is not blinking.

Note! In case of values 3 or 4, check if the Device performs the complete cycle of moving (up, down, up, and down to 50%), if the limit switches are set correctly and if the wiring is done according to instructions in the user guide.

Calibration with the push-button (SW1)

Move blind to the top (upper) position.
Press SW1 4 times in 3 seconds.
The Device will start calibration and complete 4 cycles: up, down, up, and down to 50%.
Calibration using SW1 is not time-limited!

Calibration with the S button

Enter the Setting mode by pressing the S button for less than 0,5 s (short press).
Keep pressing the S button until the calibration is selected, indicated by the yellow LED color.
Start the calibration by pressing the S button for more than 2 s.
Make sure that the yellow LED is not blinking.

Note! If the yellow LED is still blinking, check if the Device performs the complete cycle of moving (up, down, up, and down to 50%), if the limit switches are set correctly and if the wiring is done according to instructions in the user guide.

Slats tilting position calibration (Venetian mode)

Parameter No. 71 set to 1.

When enabling the venetian blind mode, position calibration for slats titling must be done. After that, the position and angle of the slats can be set. By default, the rotation time of slats is set to 1,5 s. This value can be changed with the Parameter No. 72.

Add (include) and perform the Device calibration process according to the Shutter positioning calibration section.
Set the Parameter No. 71 to 1 Venetian blinds.
By default, the full rotation time is set to 1,5 s. If this time is too long (if the blind starts to move up or down after the slats full cycle), decrease this time with the Parameter No. 72. If this time is too short (if the slats do not turn for a full cycle), increase this time with the Parameter No. 72.
Repeat the 3rd step until the position of the slats is correct.

Note! If the turning time is set correctly, slats setting should not move blinds up or down.

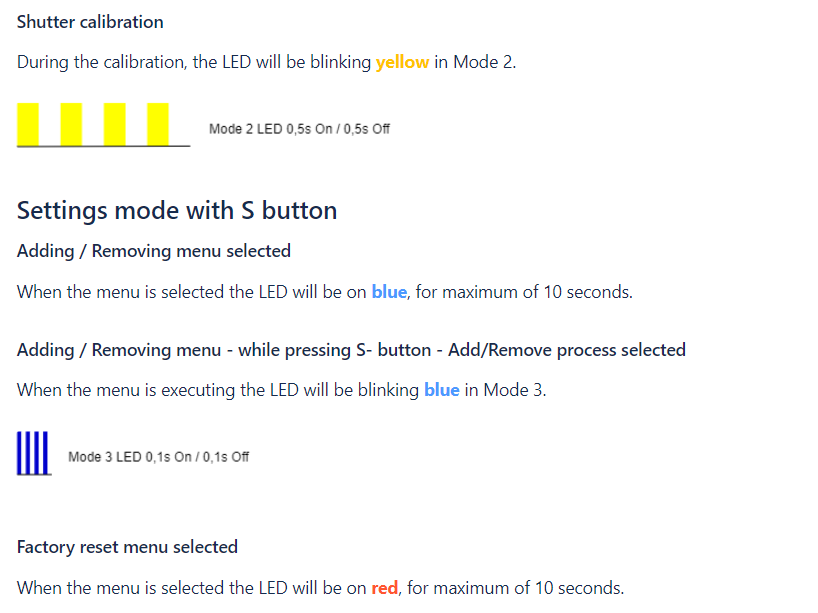

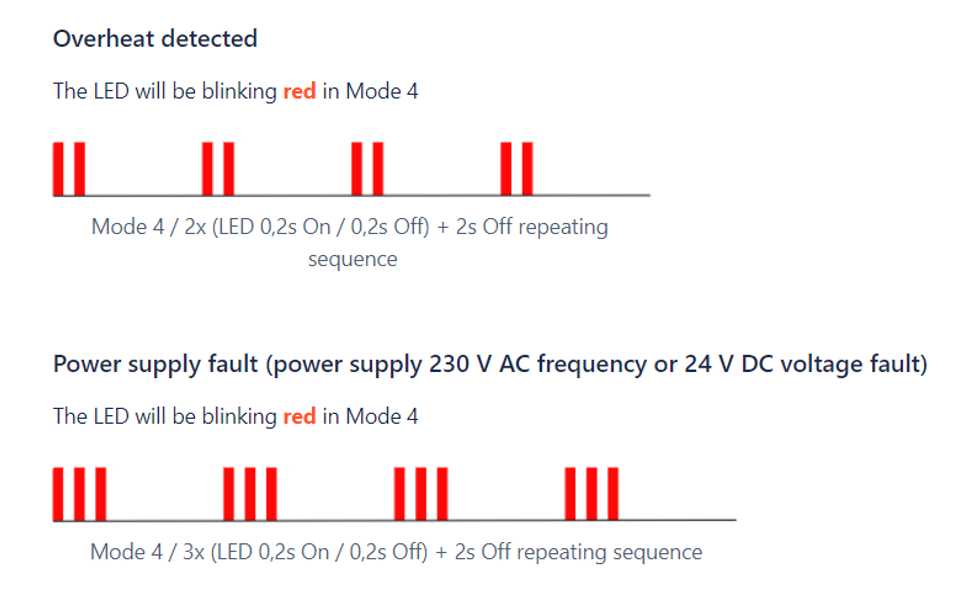

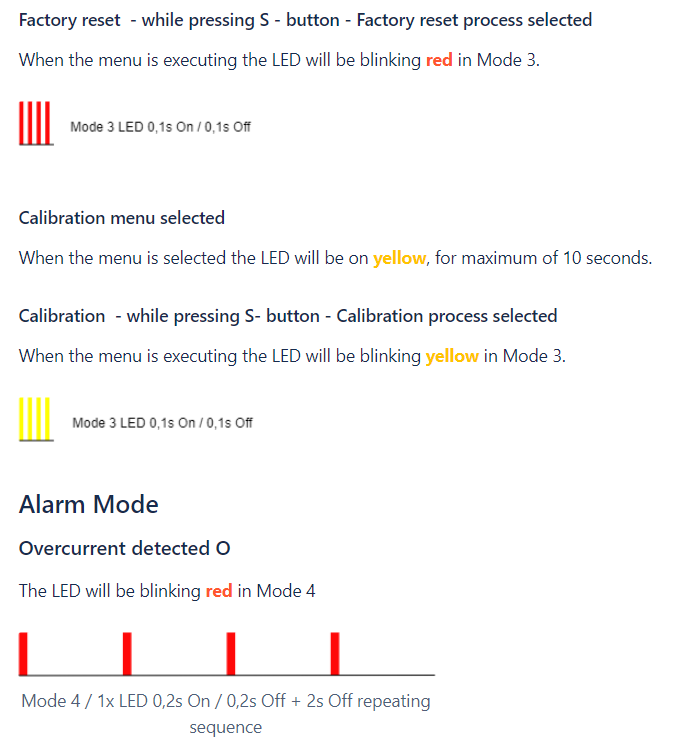

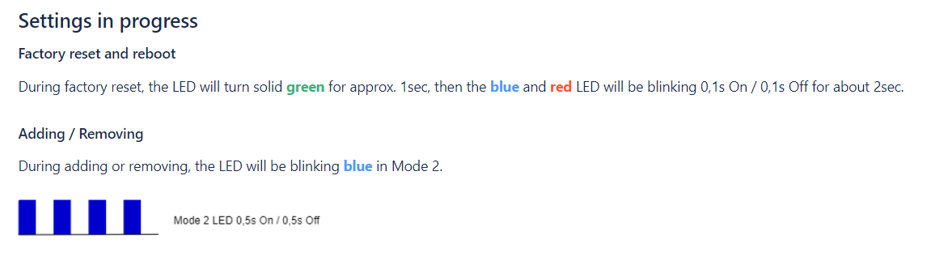

LED Signalisation

Click to see LED signalisation

General rules

To switch between Normal and Setting modes, press the S button once.
Solid LED means that the Device is in Setting mode (this does not apply to plugs). When the Device is in Setting mode, it automatically switches to Normal mode after 10s.
If the LED is not in Alarm mode, it will turn off after a timeout of 30 min (this does not apply to plugs). Press on the S button or Device power cycle wakes the LED up for 30 min.

Normal mode LED status: Normal mode is defined by a stable Device function that can last infinitely long.
