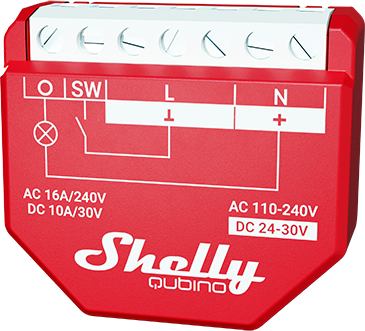

Shelly Wave 1PM (US)
Device identification
Device: Shelly Wave 1PM (US)
US Part number/Ordering Code: QNSW-001P15US
Z-Wave Product type ID: 0x0002
Z-Wave Product ID: 0x0084
Z-Wave Manufacturer: Shelly Europe
Z-Wave Manufacturer ID: 0x0460
Terminology
Device - In this document, the term “Device” is used to refer to the Shelly Qubino device that is a subject of this guide.
Gateway (GW) - A Z-Wave™ gateway, also referred to as a Z-Wave™ controller, Z-Wave™ main controller, Z-Wave™ primary controller, or Z-Wave™ hub, etc., is a device that serves as a central hub for a Z-Wave™ smart home network. The term “gateway” is used in this document.
S button - The Z-Wave™ Service button, located on Z-Wave™ devices and is used for various functions such as adding (inclusion), removing (exclusion), and resetting the device to its factory default settings. The term "S button" is used in this document.
Adding/Inclusion - The process of adding Z-Wave device to a Z-Wave network - gateway. The words included, added, etc. are used in this regard.
Removing/Exclusion - The process of removing Z-Wave device from a Z-Wave network - gateway. The words excluded, removed, etc. are used in this regard.
Short description

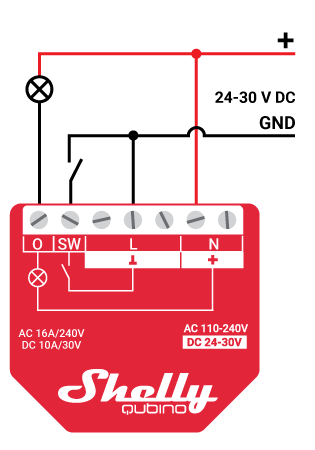

The Device is a single product that enables the control of the on/off function for one electrical appliance such as bulb, ceiling fan, IR heater (with load up to 15 A). It measures power consumption of the connected device. The Device is compatible with switches (default) and push-buttons.
