Shelly Duo/Duo GU10
Downloads
Manuals
Multilanguage user guide - English, Deutsch, Italiano, Espa?ol, Portugu?s, Fran?ais
Compliance
Shelly Duo RGBW multilingual EU declaration of conformity.pdf
Shelly Duo GU10 RGBW multilingual EU declaration of conformity.pdf
Shelly Duo GU10 - WW CW UK PSTI ACT Statement of compliance.pdf
Shelly Duo E27 - WW CW UK PSTI ACT Statement of compliance.pdf

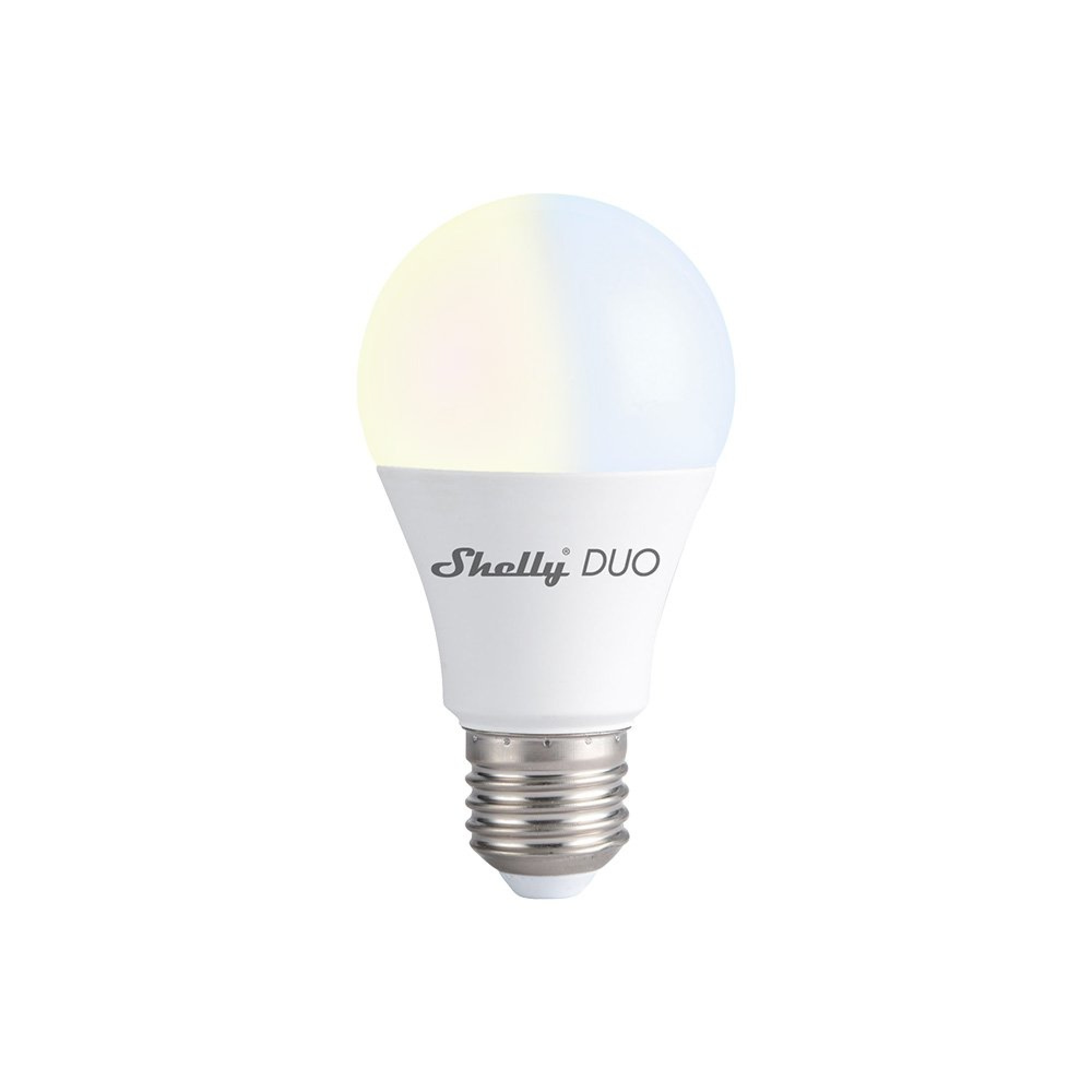

What is Shelly Duo?
Dimmable white light by fine-tuning your brightness
Control the lighting at home, no matter where you are. Now you wonÂ’t be leaving the lights on. Shelly Duo can be set to automatically turn ON/OFF based on the sunrise and sunset hours.
Features
No HUB required.
Bulb supports 110V and 220V power supplies.
Dimmable white light by fine-tuning your brightness.
It can be integrated to work with all other Shelly devices.
Compatible with Android, iOS, Amazon Alexa, Google Assistant, and home automation servers using MQTT, CoAP, and REST API.
Easily make your Arduino project live and usable in your automation project.
Specification
DEVICE |
E27 |
GU10 |
|---|---|---|
Power | ||
Power rating |
9 W |
5 W |
Socket |
E27 |
GU10 |
Power supply |
230 VAC ±10%, 50/60 Hz |
|
Features | ||
Brightness |
Up to 800 lm |
Up to 400 lm |
Dimming |
Yes |
|
Color temperature |
2700 K – 6500 K |
|
Beam angle |
200° |
120° |
Filament |
LED |
|
Glass / Coating |
Matte |
|
Protection class |
IP20 |
|
Operational temperature |
-15 ?C to +40?C |
|
Device power consumption |
< 1 W |
|
Local and remote control |
Yes |
|
Sunrise / Sunset |
Yes |
|
Weekly schedule |
Yes |
|
Lifetime |
30000 hours |
|
Size |
60 x 122 mm |
50 x 73 mm |
Connectivity | ||
Wireless / Wi-Fi protocol |
802.11 b/g/n |
|
RF band |
2400 – 2484 MHz |
|
Max. RF power |
< 20 dBm |
|
Range |
Up to 50 m outdoors and up to 30 m indoors |
|
