Shelly BLU Button1 Red

$16.49

In stock
In stock
In stock
In stock

Typically used for:

Scene activation

Shelly BLU Button1 Red

$16.49

In stock

Bluetooth button for operated actions and scene activation. Quickly control your smart devices with just a click - turn off the lights, adjust your blinds, open the garage door and many more.

Typically used for:

Scene activation

Color: Red

Get Protection Plus

$1.64

Extended Coverage: Beyond the standard warranty
Free Replacements
Accidental Damage Protection

Key Features

Scripting functionality for endless actions based on location
Full compatibility with Home Assistant and any other device which is supported by BTHome protocol
Uses BLE technology
Able to turn on/off appliances, dim, and activate scenes
Encryption
Has sound and light alert; "Hush" mode for no sounds
"Find me" function activated by beacon mode
Range of 10m indoors and 30m outdoors
Works with Plus, Pro and Gen3 devices

ShellyBLU Button1

Device identification

Device name: ShellyBLU Button1
Device model: SBBT-002C

Short description

Shelly Blu Button 1 (the Device) is a Bluetooth button, which allows you easily activate and deactivate devices or scenes with just a click.

Features

Long battery life
LED indication
Buzzer
Beacon mode
Encrypted mode

Main applications

Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
Government/municipal
University/college

Connectivity

Bluetooth

User interface

Inputs

One push button
- Press shortly once, twice, or three times, or press and hold for about 2 sec to emit a signal
- Press and hold for 10 sec to pair ShellyBLU Button1 with another Bluetooth device.
- Press and hold for 30 sec to factory reset (possible only shortly after inserting the battery).

Outputs

Red LED indication
Buzzer

Specifications

Type	Value
Physical
Size (HxWxD):	36x36x6 mm ±0.5 mm / 1.44õ1.44õ0.25 in ±0.02 in
Weight with the battery:	9 g ±1 g / 0.30 ±0.05 oz
Shell material:	Plastic

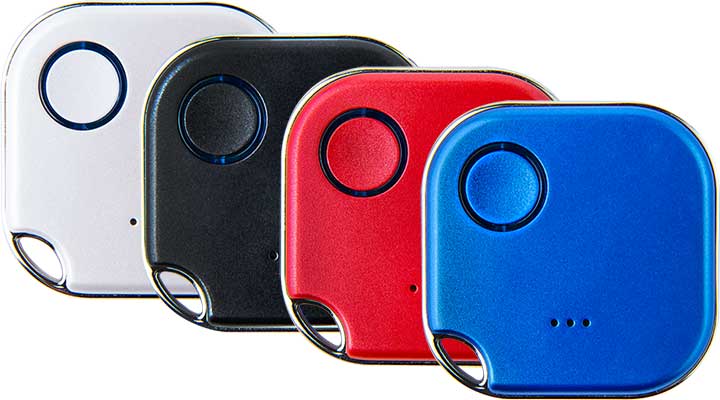

Color:	White, black, red, blue
Environmental
Ambient temperature:	-20 °C to 40 °C / -5 °F to 105 °F
Humidity:	30 % to 70 % RH
Electrical
Power supply:	1x 3 V CR2032 battery (included)
Battery life:	Battery life: up to 2 years
Radio
RF band:	2400 - 2483.5 MHz
Max. RF power:	<4 dBm
Bluetooth Protocol:	4.2
Bluetooth Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
MCU
CPU:	EFR32BG22
Flash:	32KB RAM
Firmware capabilities
Encryption:	AES encryption (CCM mode)
Beacon mode:	Yes
Multi-click support:	Up to 4 possible actions

Troubleshooting

...

Components and APIs

Compliance

Shelly BLU Button1 multilingual EU declaration of conformity.pdf

Battery material safety data sheet

CR-PSDS-01 Panasonic MSDS

Printed user guide

Shelly BLU Button 1 multilingual printed user and safety guide.pdf

Installation guides

Knowledge Base

View full details

why shelly Blu button1?

One click to a smarter home

With Shelly BLU Button1, you can quickly control your smart devices with just a click. Simply set it up and place it wherever you need it most. Whether you want to turn off the lights, adjust your blinds, or lock your front door, BLU Button1 puts the power of your smart home at your fingertips.

Features

Scripting

With the scripting functionalities on your Shelly devices, you can easily create complex local actions triggered by the Shelly BLU Button1 when it's within range. Now, based on RSSI, you can fully customize and automate your smart home. Every Shelly Plus and Pro in your home with an enabled Bluetooth gateway act as a repeater of the signal. Furthermore, you can use the same button to trigger different actions in multiple locations, like your home, office, and villa, without having to memorize different push combinations. Scripting functionalities can create endless possibilities.

Features

High protection

With support for the Advanced Encryption Standard, we have ensured that all communications are encrypted and secure. This encryption ensures that even if someone attempts to intercept your device's communication, they will not be able to access your data or compromise your security. Moreover, with our device's built-in protection against replay attacks, you can be assured that any attempts to manipulate the signal will be prevented.
