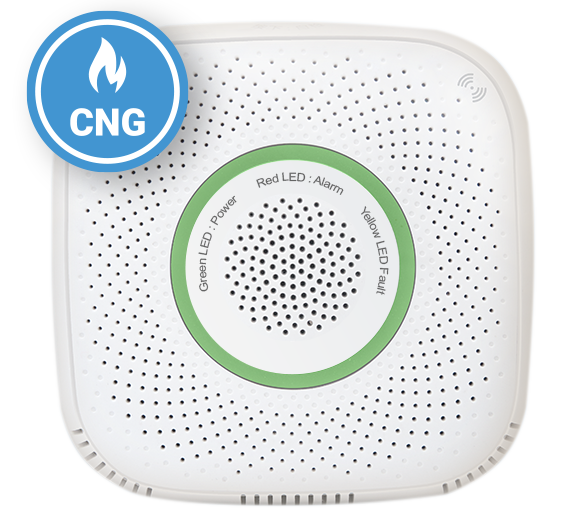

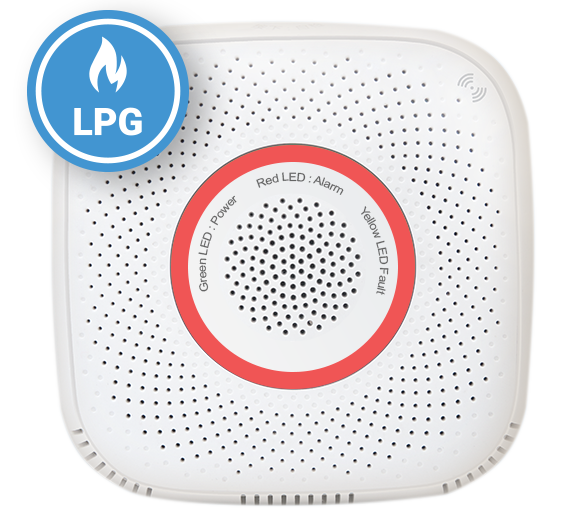

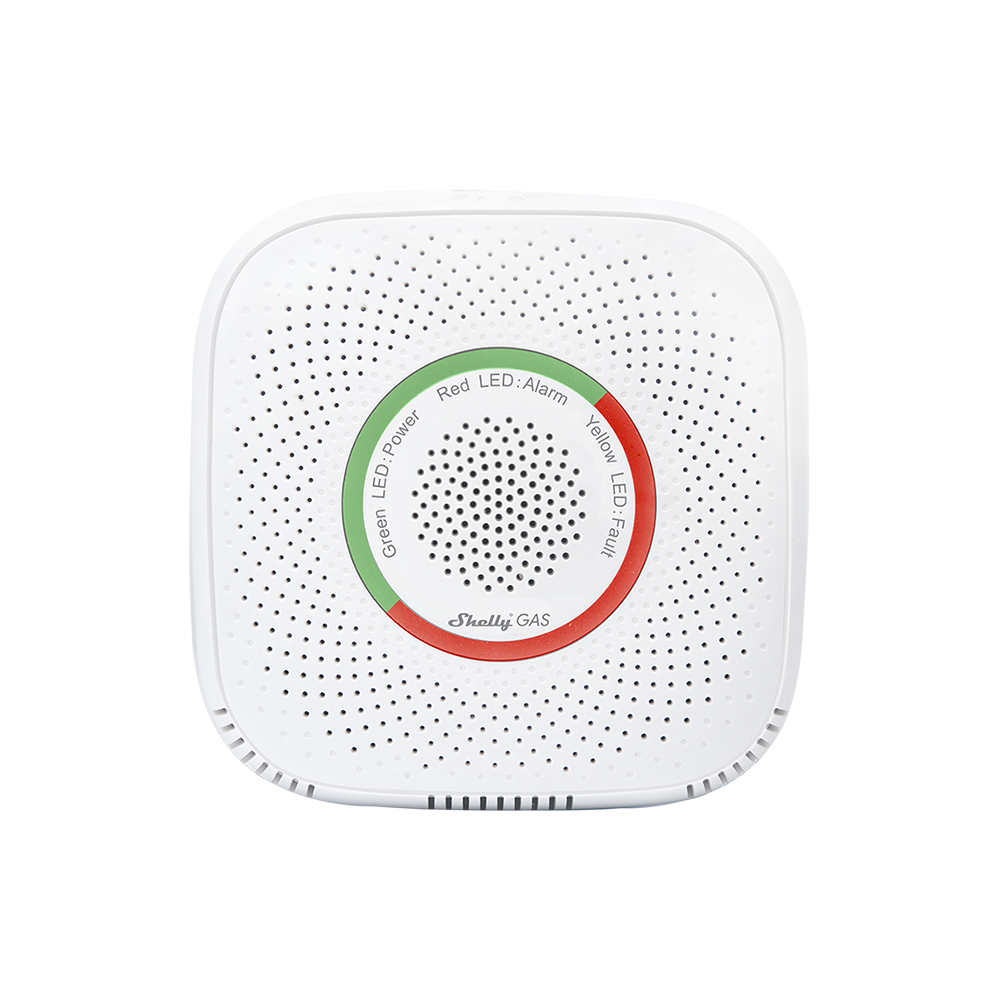

What is Shelly Gas?
A smart gas sensor

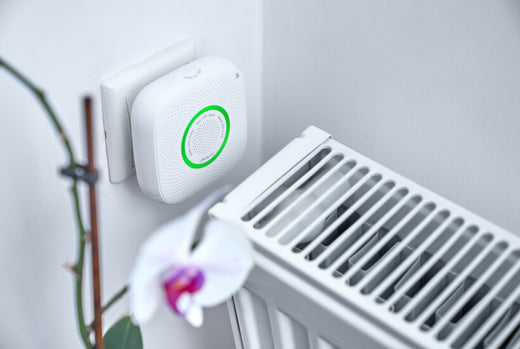

Many home appliances are dependent on natural gas, but not many homes have sensory detection for gas leaks, which can be dangerous. 2 types of Shelly GAS detector – Compressed Natural Gas (CNG) or Liquefied Petroleum Gas (LPG) are providing additional protection for your home and family. Its long life span, little sensitivity drift, and Wi-Fi technology allow you always to know if gas is threatening your home.
Features
- No HUB required.
- 2 types of the gas detector – LPG or CNG
- Sound and light alarm with an app notification.
- Flame-resistant shell.
- It can be integrated to work with all other Shelly devices.
- Compatible with Android, iOS, Amazon Alexa, and home automation servers using MQTT, CoAP, and REST API.
- Easily make your Arduino project live and usable in your automation project.
Specification
| SPECIAL FUNCTIONS | |
| Power supply AC | 110-230V ±10%, 50/60Hz |
| Power supply DC | No |
| SPECIAL FUNCTIONS | |
| Gas detector | Compressed Natural Gas – CNG / Liquefied Petroleum Gas – LPG |
| Device temperature protection | Yes – Flame Resistant |
| FEATURES | |
| Alarm indicator | LED Flash & Sound |
| Alarm sensitivity | 6% LEL |
| Sound level | ≥70dB |
| Valve manipulator jack output | 11-13V, 500mA |
| Operational temperature | -10ºC to +50ºC |
| Device power consumption | < 3 W |
| Intelligent On/Off | Yes |
| Local and remote control | Yes |
| CONNECTIVITY | |
| Wireless/WiFi Protocol | 802.11 b/g/n |
| Radiofrequency | 2400 – 2484 MHz |
| Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
| DIMENSIONS | |
| Size | 89.5 mm x 89.5 mm x 38 mm (plug not included) |
